Same model may have multiple batches, images only for reference.

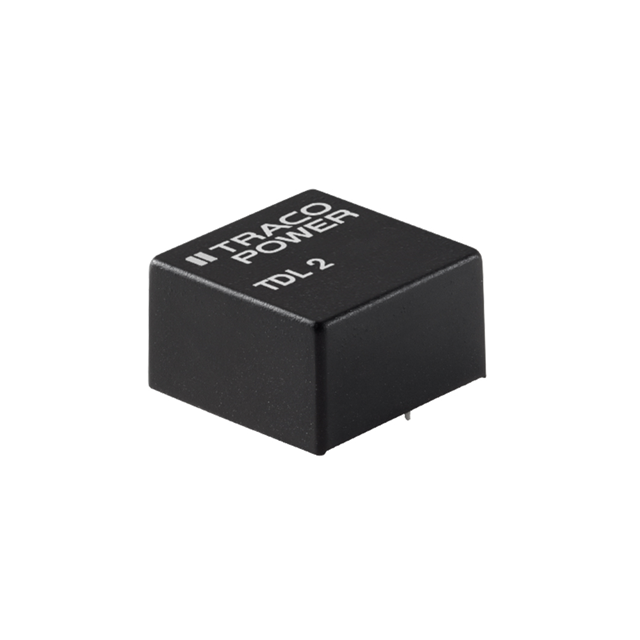

TDL 2-0521 Real Image
Same model may have multiple batches, images only for reference.

TDL 2-0521

Part No TDL 2-0521
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 2W / Isolated Module DC DC Converter 2 Output 5V -5V 200mA, 200mA 4.5V - 10V Input
Datasheet
TDL 2-0521 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 10V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 200mA, 200mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 70°C
Efficiency 83%
Mounting Through Hole
Case / Package 7-DIP Module, 5 Leads
Size / Dimension 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Base Product Number TDL 2
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 2266-TDL 2-0521,TDL 2-0521-ND,TDL2-0521
Standard Package 10
Win Source Part Number 1335344-TDL 2-0521
Ultra Librarian 3D Model Ultra Librarian TDL 2-0521 CAD Model

Description

This Traco Power product is an isolated module DC-DC converter that has two outputs.

  • Packaging: Tube
  • Size: 0.55 inches L x 0.55 inches W x 0.31 inches H
  • Power Rating: 2W
  • Voltage Isolation: 1.5kV
  • Current Output: 200mA (each output)
  • Efficiency: 83%
  • Mounting: Through-hole
  • ECCN: EAR99
  • RoHS Compliance: RoHS3 compliant
  • Operating Temperature: -40°C ~ 70°C
