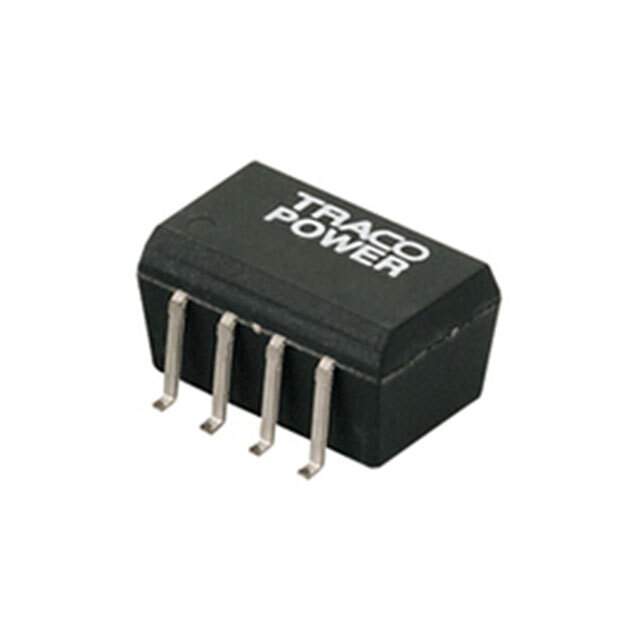

The TSM1215S is a DC-DC converter module manufactured by TRACO Electronic AG. It's designed to provide a regulated output voltage from a DC input voltage, offering electrical isolation between the input and output.

Applications:

• Industrial automation
• Instrumentation
• Medical equipment
• Transportation systems
• Distributed power systems

Features:

• Isolated output
• Wide input voltage range
• High efficiency
• Short circuit protection
• Overload protection
• Continuous short circuit protection

Benefits:

• Electrical isolation for safety and noise reduction
• Versatile power supply solution
• Reduced power consumption
• Protection against damage from short circuits and overloads
• Compliance with safety standards

Additional Details:

The TSM1215S is a compact module designed for easy integration. Key electrical specifications include the input voltage range, output voltage, output current, isolation voltage, and efficiency. The datasheet is essential for accurate technical data and safety guidelines. DC-DC converters utilize switching techniques to convert DC voltage levels, providing regulation and isolation. Electrical isolation prevents ground loops and improves safety by isolating the input and output circuits. Overload and short circuit protection features safeguard the module and the connected circuitry from damage due to excessive current draw or short circuits. Compliance with safety standards, such as EN 60950-1, ensures the product meets safety requirements for various applications. Proper mounting and thermal management are crucial for achieving reliable performance and long life, as outlined in the manufacturer's documentation.
