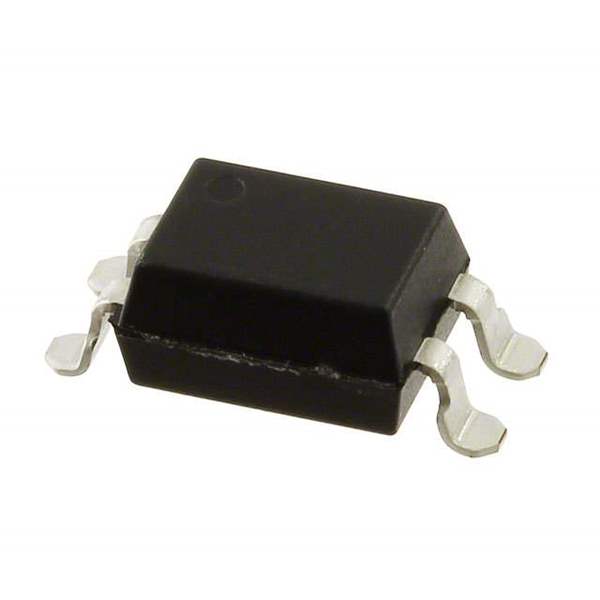

TLP785(GRH-TP6,F) Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

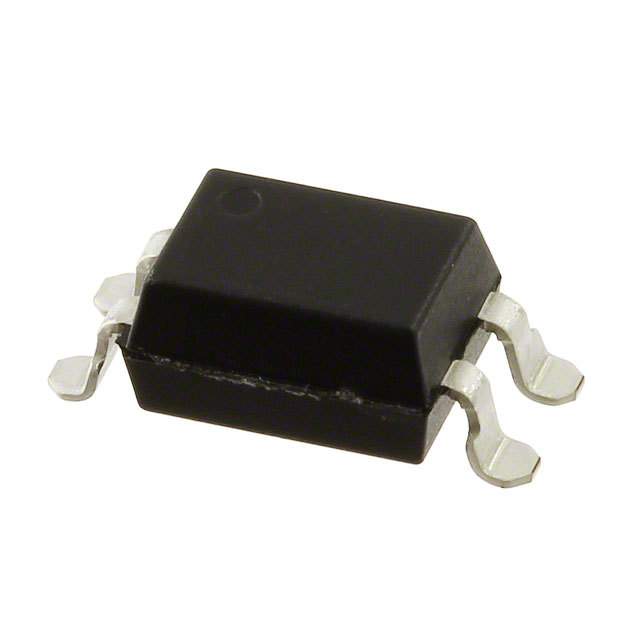

TLP785(GRH-TP6,F)

Part No TLP785(GRH-TP6,F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATR 5KV TRANSISTOR 4-SMD
Datasheet
TLP785(GRH-TP6,F) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 150% @ 5mA
Maximum DC Current Transfer Ratio 300% @ 5mA
Switching Turn-On and Turn-Off Time 3μs, 3μs
Rise and Fall Time 2μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.15V
Continuous forward current- Max 60mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C to 110°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 099856-TLP785(GRH-TP6,F)
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TLP785(GRH-TP6,F) CAD Model

Description

The Toshiba Semiconductor and Storage TLP785(GRH-TP6,F) is an SMD (SMT) mounted transistor output optocoupler with a forward voltage of 1.15V and an isolation voltage of 5000Vrms.

  • Mounting: SMD (SMT)
  • Forward Voltage: 1.15V
  • Isolation Voltage: 5000Vrms
  • Channel: Single
  • Vce Saturation: 400mV
  • Minimum DC Current Transfer Ratio: 150% @ 5mA
  • Maximum DC Current Transfer Ratio: 300% @ 5mA
  • Switching Turn-On Time: 3μs
  • Switching Turn-Off Time: 3μs
  • Rise Time: 2μs
  • Fall Time: 3μs
  • Maximum Output Voltage: 80V
  • Channel Output Current: 50mA
  • Operating Temperature Range: -55°C to 110°C
  • Supply and Demand Status: Sufficient
