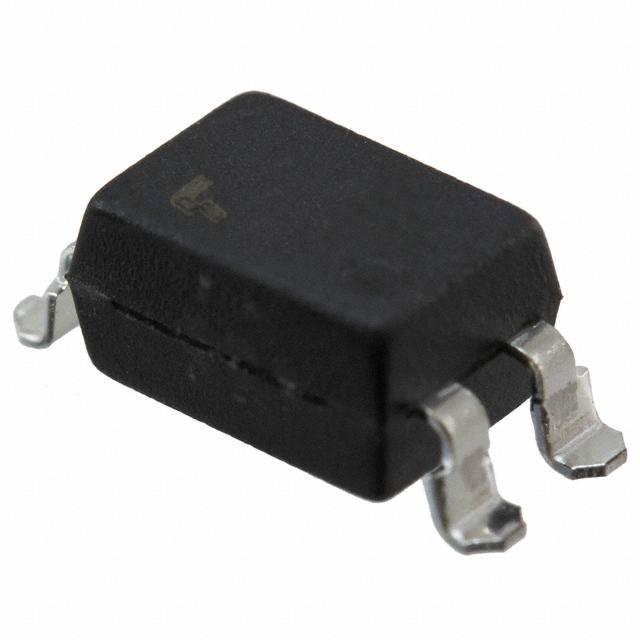

TLP781(GB,F) Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP781(GB,F)

Part No TLP781(GB,F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATR 5KV TRANSISTOR 4-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Toshiba Semiconductor and Storage
Packaging Tube/Rail
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 100% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Switching Turn-On and Turn-Off Time 3μs, 3μs
Rise and Fall Time 2μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.15V
Continuous forward current- Max 60mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C to 110°C
Mounting Through Hole
Case / Package 4-DIP
Win Source Part Number 1108963-TLP781(GB,F)
Popularity Medium
Supply and Demand Status Balance
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian TLP781(GB,F) CAD Model

Description

The Toshiba Semiconductor and Storage TLP781(GB,F) Isolator is a through-hole mounted isolator that comes with an isolation voltage of 5000Vrms and a minimum DC current transfer ratio of 100% @ 5mA.

  • Isolation Voltage: 5000Vrms
  • Minimum DC Current Transfer Ratio: 100% @ 5mA
  • Maximum DC Current Transfer Ratio: 600% @ 5mA
  • Switching Turn-On Time: 3μs
  • Switching Turn-Off Time: 3μs
  • Operating Temperature: -55°C to 110°C
  • Case/Package: 4-DIP
  • Input Type: DC
  • Number of Channels: 1
  • Forward Voltage: 1.15V
  • Vce Saturation (max): 400mV
  • Channel Output Current: 50mA
  • Continuous Forward Current- Max: 60mA
  • Manufacturer: Toshiba Semiconductor and Storage
