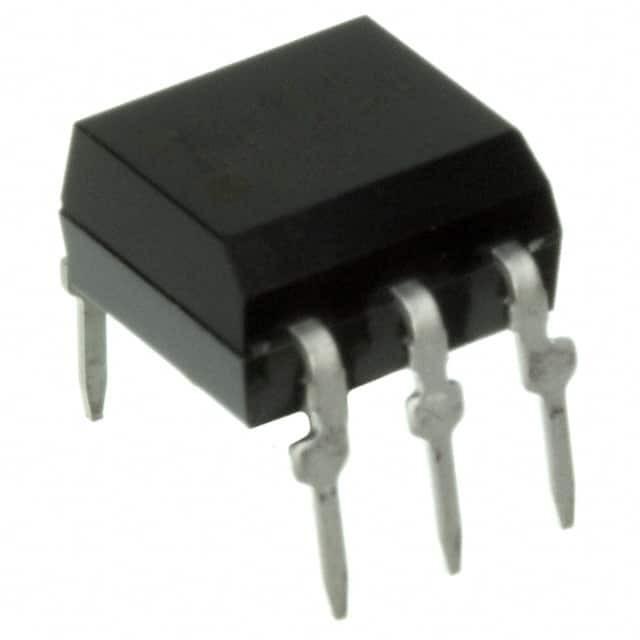

Same model may have multiple batches, images only for reference.
TLP748J(D4,F) Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP748J(D4,F)

Part No TLP748J(D4,F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 4KV SCR 6DIP / Optoisolator SCR Output 4000Vrms 1 Channel 6-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Triac, SCR Output
Mfr Toshiba Semiconductor and Storage
Package Tube
Output Type SCR
Zero Crossing Circuit No
Number of Channels 1
Voltage - Isolation 4000Vrms
Voltage - Off State 600 V
Static dV/dt (Min) 5V/µs
Current - LED Trigger (Ift) (Max) 10mA
Current - On State (It (RMS)) (Max) 150 mA
Current - Hold (Ih) 1mA
Turn On Time 15µs
Voltage - Forward (Vf) (Typ) 1.15V
Current - DC Forward (If) (Max) 50 mA
Temperature Range - Operating -40°C ~ 100°C
Mounting Type Through Hole
Package / Case 6-DIP (0.300", 7.62mm)
Supplier Device Package 6-DIP
Approval Agency BSI, SEMKO, UR, VDE
Base Product Number TLP748
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Other Names TLP748J (D4,F),TLP748JD4F
Standard Package 50
Win Source Part Number 1100065-TLP748J(D4,F)
Ultra Librarian 3D Model Ultra Librarian TLP748J(D4,F) CAD Model

Description

The Win Source Part Number 1100065-TLP748J(D4,F) is an isolator optoisolator electronic component that has SCR output.

  • Package: 6-DIP (0.300", 7.62mm)
  • Standard Package: 50
  • Voltage-Isolation: 4000Vrms
  • Voltage-Off State: 600V
  • Maximum DC Forward Current: 50mA
  • Maximum RMS Current: 150mA
  • Turn On Time: 15µs
  • Static dV/dt: 5V/µs
  • Current Hold: 1mA
  • Current LED Trigger: 10mA
  • Manufacturer: Toshiba Semiconductor and Storage
