The TLP630G is a one-channel optocoupler with a high isolation voltage of 5000Vrms, making it ideal for use in industrial control systems.

• Forward Voltage: The device has a low forward voltage of 1.15V.
• Max Saturation Voltage: a maximum saturation voltage of 400mV, ensuring efficient operation.
• Min DC Current Transfer Ratio: With a minimum DC current transfer ratio of 100% @ 5mA, the TLP630G is a reliable and high-performance optocoupler.
• Max Output Voltage: The device has a maximum output voltage of 55V.
• Channel Output Current: a channel output current of 50mA.

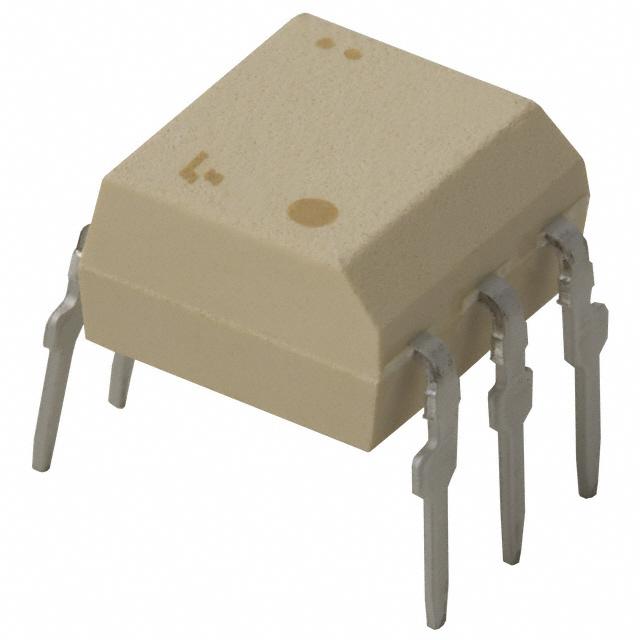

• Package: The TLP630G is housed in a 6-DIP package.
• Operating Temperature Range: can operate in a temperature range of -55°C to 100°C.
• Switching Turn-On and Turn-Off Time: The switching turn-on and turn-off time is 3μs.
• Rise and Fall Time: the rise and fall time is 2μs and 3μs, respectively.
• Applications: The TLP630G is widely used in isolators.
