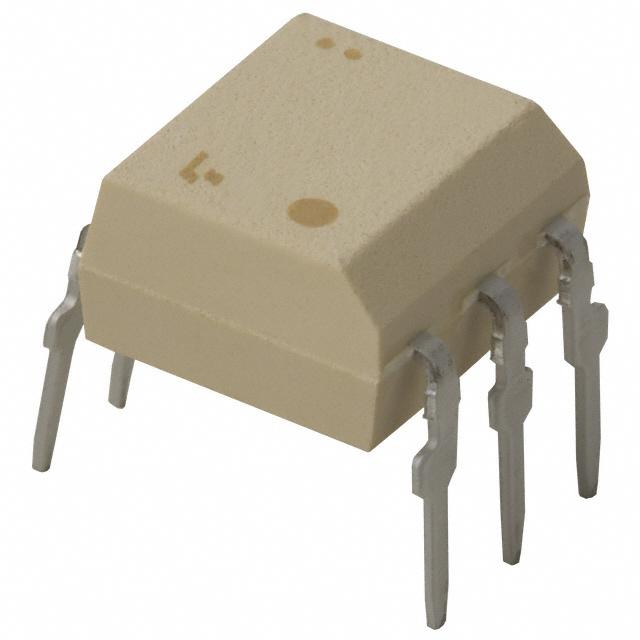

The TLP630(GB) is a single channel optocoupler manufactured by Toshiba Semiconductor and Storage.

• Type: It is an isolator that comes in a 6-DIP package.
• Isolation Voltage: The device has an isolation voltage of 5000Vrms.
• Max Output Voltage: a maximum output voltage of 55V.
• Forward Voltage: The forward voltage of the TLP630(GB) is 1.15V.
• Vce Saturation (Max): the maximum Vce saturation is 400mV.
• Min DC Current Transfer Ratio: The device has a minimum DC current transfer ratio of 100% @ 5mA.
• Max DC Current Transfer Ratio: a maximum DC current transfer ratio of 600% @ 5mA.
• Switching Turn-On and Turn-Off Time: The switching turn-on and turn-off time is 3μs.
• Rise and Fall Time: the rise and fall time is 2μs and 3μs respectively.
• Channel Output Current: The channel output current of the device is 50mA.
• Continuous Forward Current: the continuous forward current is 60mA.
• Operating Temperature Range: The TLP630(GB) is suitable for use in a temperature range of -55°C to 100°C.
• Applications: It is commonly used in isolator applications in the electronics industry.
