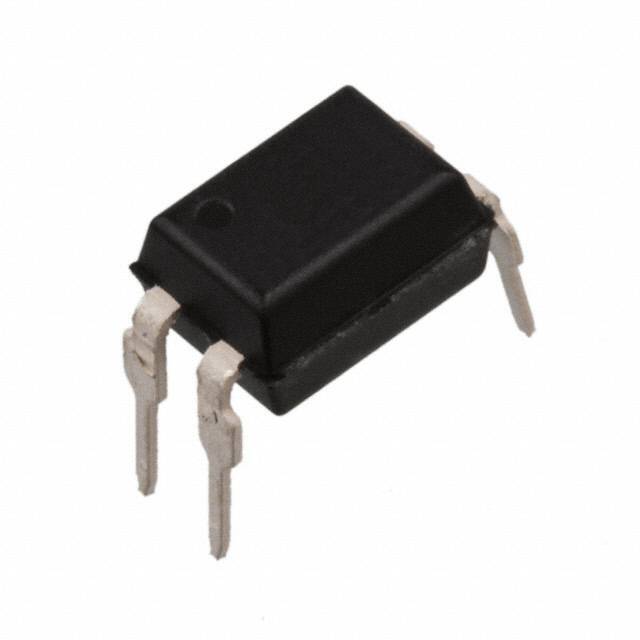

The TLP621 is a phototransistor coupler from Toshiba Semiconductor and Storage, comprising a gallium arsenide infrared LED optically coupled to a silicon phototransistor. This device provides electrical isolation between input and output circuits, making it suitable for a wide array of applications. It is available in various package options to suit different mounting requirements.

Applications

• Programmable Logic Controllers (PLCs): Input/output isolation in industrial control systems.
• Microprocessor Interfaces: Isolation between microprocessors and external circuits.
• Power Supplies: Feedback isolation in switched-mode power supplies.
• Industrial Equipment: Signal isolation and control in various industrial applications.
• Office Automation Equipment: Used in printers, copiers, and other office devices.

Features

• High Isolation Voltage: Provides electrical isolation for enhanced safety.
• Compact Package: Enables high-density mounting on circuit boards.
• High Collector-Emitter Voltage: Supports a wide range of operating voltages.
• Fast Switching Speed: Facilitates quick signal transmission.
• Pb-Free (Lead-Free): Compliant with environmental regulations.

Benefits

• Enhanced Safety: Electrical isolation enhances safety in high-voltage applications.
• Space-Saving Design: Compact package reduces the overall size of equipment.
• Improved Performance: Fast switching speed ensures efficient signal transmission.
• Wide Operating Voltage Range: Versatile for various applications.
• Environmentally Compliant: Pb-Free construction meets environmental standards.

Additional Details

The TLP621 boasts an isolation voltage of 5000 Vrms. It generally operates with a forward current of 20 mA and features a collector-emitter voltage rating of 80 V. This phototransistor coupler is vital for protecting control circuitry from voltage spikes. Please refer to the device's datasheet for precise specifications and recommended operating parameters.
