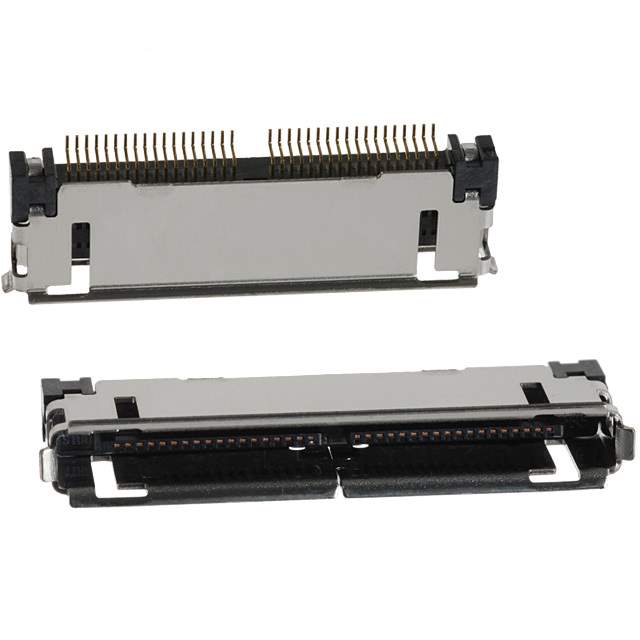

Same model may have multiple batches, images only for reference.

ST60-36P

Name: ST60-36P
Brand: Hirose Electric Co Ltd
SKU: 343513
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ST60-36P
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RECEPT 36POS R/A SMD
Datasheet	ST60-36P Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Hirose Electric Co Ltd
Packaging	Reel - TR
Status	Obsolete(EOL)
Connector Type	Receptacle
Contact Type	Non-Gendered
Style	Board to Cable/Wire
Number of Positions	36
Number of Positions Loaded	All
Pitch - Mating	0.020" (0.50mm)
Number of Rows	1
Mounting	Board Edge, Surface Mount, Right Angle, Reverse Mount
Termination	Solder
Fastening Type	Latch Holder
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30μin (0.76μm)
Insulation Color	Black
Temperature Range - Operating	-30°C to 80°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Features	Board Guide, Shielded
Current Rating	0.5A
Voltage Rating	100VAC
Applications	General Purpose, Telecommunications
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Finish Thickness - Post	Flash
Win Source Part Number	121968-ST60-36P
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian ST60-36P CAD Model

Alternative Products

Description

The ST60-36P is a connector manufactured by Hirose Electric Co Ltd.

Manufacturer: Hirose Electric Co Ltd
Supply and Demand: Balanced
Type: Board-to-cable/wire connector
Designed for: General purpose and telecommunications applications
Features: Board guide, shielded design, and non-gendered contact type
Characteristics: Efficient and reliable
