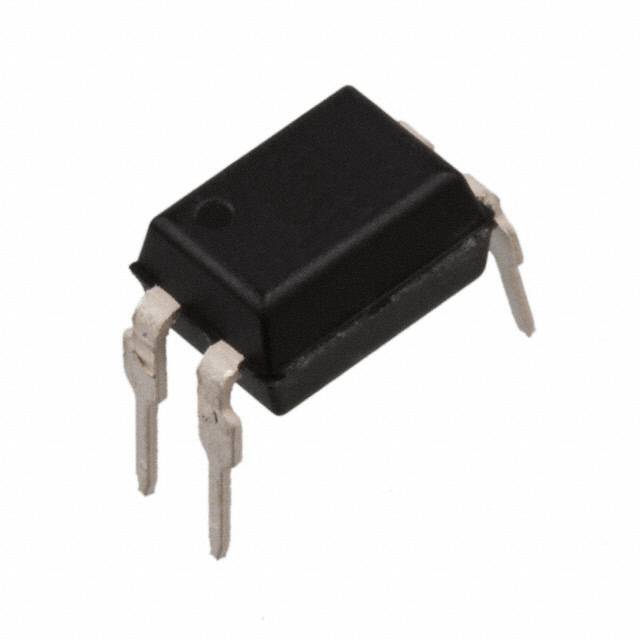

The TLP621(D4,F) is a phototransistor coupler manufactured by Toshiba Semiconductor and Storage. It consists of a gallium arsenide infrared LED optically coupled to a silicon phototransistor, providing electrical isolation between the input and output circuits. The '(D4,F)' likely denotes a specific packaging or testing variation. This device is suitable for applications requiring high isolation and reliable signal transfer.

Applications

• Programmable Logic Controllers (PLCs): Input/output isolation and signal transmission in industrial control systems.
• Microcontroller Interfaces: Isolation between microcontrollers and peripheral devices.
• Switch-Mode Power Supplies: Feedback isolation in power supply circuits.
• Industrial Equipment: Signal isolation and control in a variety of industrial applications.
• Office Automation: Used in equipment like printers and copiers.

Features

• High Isolation Voltage: Provides reinforced insulation between the input and output.
• Compact Package: Designed for high-density PCB mounting.
• High Collector-Emitter Voltage: Capable of handling high voltage signals on the output.
• Fast Switching Speed: Allows for efficient signal transmission.
• Pb-Free (Lead-Free): Compliant with RoHS environmental standards.

Benefits

• Enhanced Safety: High isolation voltage improves safety when dealing with high voltages.
• Space Savings: Compact packaging enables dense board layouts.
• Reliable Performance: Offers dependable signal transfer in demanding environments.
• Versatile Applications: Suitable for a wide variety of industrial and commercial applications.
• Environmentally Friendly: Pb-Free construction meets environmental requirements.

Additional Details

The TLP621(D4,F) features a high isolation voltage of 5000 Vrms. The typical forward current for the LED is around 20 mA, and the collector-emitter voltage is rated at 80 V. The specific parameters, especially regarding the current transfer ratio (CTR), can vary, so consulting the datasheet is crucial. This phototransistor coupler is often chosen to prevent ground loops and protect sensitive circuits from high voltage transients. The (D4,F) likely specifies testing or packaging variations for enhanced performance or reliability.
