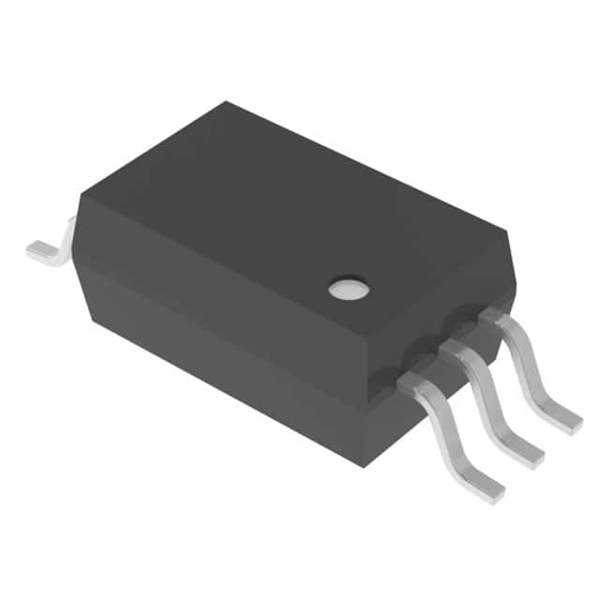

TLP5774(TP,E Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP5774(TP,E

Part No TLP5774(TP,E
Manufacturer Toshiba Semiconductor and Storage
Catalog Isolators - Gate Drivers
Description OPTOISO 5KV 1CH GATE DRIVER 6SO / 4A Gate Driver Optical Coupling 5000Vrms 1 Channel 6-SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Toshiba Semiconductor and Storage
Package Tape & Reel
Technology Optical Coupling
Number of Channels 1
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 35kV/µs
Propagation Delay tpLH / tpHL (Max) 150ns, 150ns
Pulse Width Distortion (Max) 50ns
Rise / Fall Time (Typ) 15ns, 8ns
Current - Output High, Low 3A, 3A
Current - Peak Output 4A
Voltage - Forward (Vf) (Typ) 1.65V
Current - DC Forward (If) (Max) 8 mA
Voltage - Output Supply 10V ~ 30V
Temperature Range - Operating -40°C ~ 110°C
Mounting SMD (SMT)
Package / Case 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package 6-SO
Approval Agency CQC, cUR, UR, VDE
Base Product Number TLP5774
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Other Names TLP5774(TPETR,TLP5774(TPEDKR,TLP5774(TPECT,TLP5774(TP,E(T
Standard Package 1,500
Win Source Part Number 1121951-TLP5774(TP,E
Ultra Librarian 3D Model Ultra Librarian TLP5774(TP,E CAD Model

Description

The Toshiba TLP5774(TP,E is an isolator gate driver electronic component with a technology of optical coupling.

  • Technology: Optical Coupling
  • Current Output High: 3A
  • Current Output Low: 3A
  • Current DC Forward: 8mA
  • Voltage Forward (Vf): 1.65V
  • Rise/Fall Time: 15ns, 8ns
  • Number of Channels: 1
  • Isolation Voltage: 5000Vrms
  • Common Mode Transient Immunity: 35kV/μs
  • Propagation Delay tpLH/tpHL: 150ns, 150ns
  • Current Peak Output: 4A
  • Pulse Width Distortion: 50ns
  • Package/Case: 6-SOIC (0.295", 7.50mm Width)
  • Supplier Device Package: 6-SO
  • Operating Temperature: -40°C to 110°C
  • ECCN: EAR99
