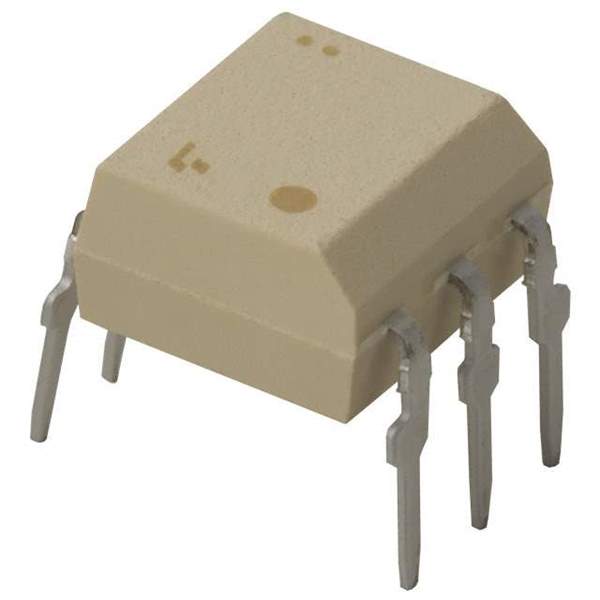

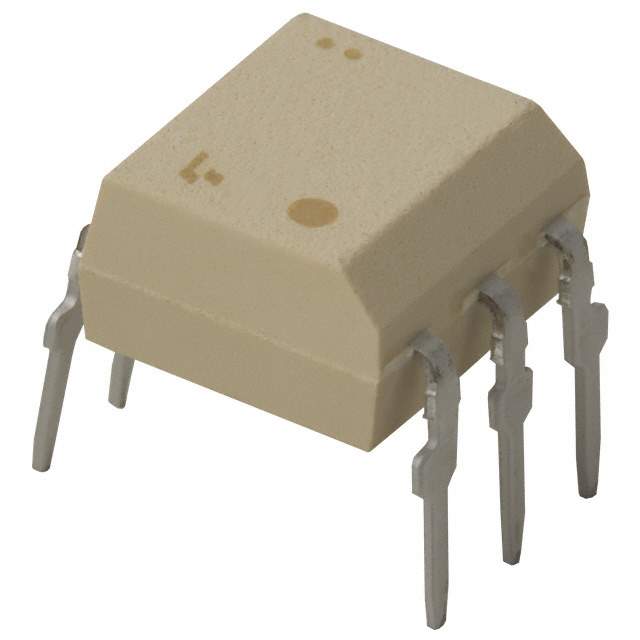

The TLP548J is a high-speed photocoupler manufactured by Toshiba Semiconductor and Storage. It's designed to provide electrical isolation between circuits while allowing for digital signal transmission. This photocoupler is commonly used in applications requiring high-speed data communication and robust isolation.

Applications

• Programmable Logic Controllers (PLCs)
• Inverter Control
• Switching Power Supplies
• High-Speed Digital Interfaces
• Measurement Equipment

Features

• High Isolation Voltage: Provides robust electrical isolation between the input and output circuits.
• High-Speed Switching: Designed for high-speed digital signal transmission.
• Low Input Current: Requires a minimal input current for activation.
• TTL Compatible: Directly compatible with TTL logic circuits.
• Compact Package: Small package size for efficient board space utilization.
• RoHS Compliant: Compliant with RoHS environmental standards.

Benefits

• Improved Safety: Provides enhanced safety by isolating sensitive circuits from high-voltage or noisy environments.
• Noise Immunity: Enhances noise immunity by preventing ground loops and electrical interference.
• Fast Data Transmission: Enables rapid digital signal transfer with minimal distortion.
• Easy Integration: Simplifies circuit design due to its compatibility with standard logic levels.
• Increased Reliability: Solid-state construction ensures long-term reliability and minimal maintenance.

Additional Details

The TLP548J uses an LED to transmit the input signal across an isolation barrier to a phototransistor on the output side. The speed of the photocoupler is determined by the characteristics of the LED and phototransistor. It is essential to follow the recommended operating conditions, including input current and supply voltage, to ensure optimal performance. The TLP548J is a reliable and efficient solution for providing electrical isolation in a wide range of digital communication and control applications. It is used in situations where noise immunity, high-speed data transfer, and electrical isolation are critical.
