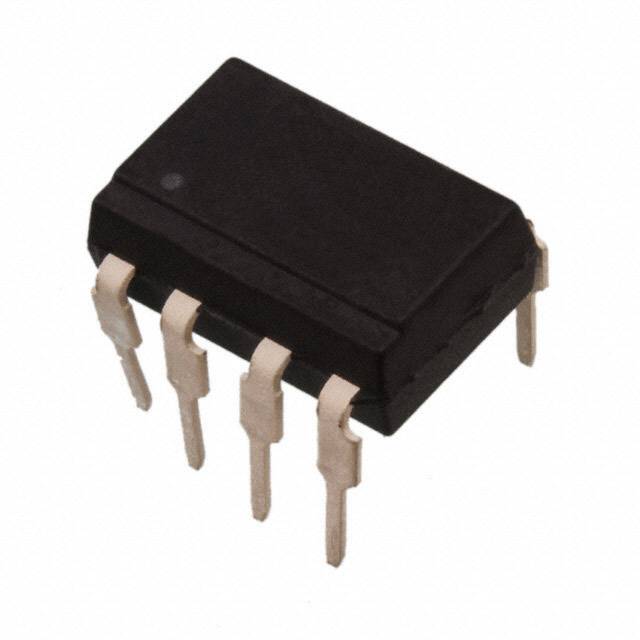

Same model may have multiple batches, images only for reference.
TLP521-3 Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP521-3

Part No TLP521-3
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Transistor, Photovoltaic Output
Description Optoisolator Transistor Output 5300Vrms 2 Channel 8-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators
Family Optoisolators - Transistor, Photovoltaic Output
Manufacturer Isocom Components 2004 LTD
Packaging Tube
Part Status Active
Number of Channels 2
Voltage - Isolation 5300Vrms
Current Transfer Ratio (Min) 100% @ 5mA
Current Transfer Ratio (Max) 600% @ 5mA
Rise / Fall Time (Typ) 4μs, 3μs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 55V
Voltage - Forward (Vf) (Typ) 1.15V
Current - DC Forward (If) (Max) 50mA
Vce Saturation (Max) 400mV
Operating Temperature Range -30°C ~ 100°C
Mounting Style Through Hole
Package 8-DIP (0.300", 7.62mm)
Manufacturer Device Package 8-DIP
Win Source Part Number 218255-TLP521-3
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TLP521-3 CAD Model

Description

The TLP521-3 by Isocom Components 2004 LTD is an optoisolator transistor with a photovoltaic output.

  • Mounting style: through-hole mounting style
  • Operating temperature range: -30°C to 100°C
  • Package: 8-DIP (0.300", 7.62mm)
  • Voltage isolation: 5300Vrms
  • Current transfer ratio: 100% @ 5mA (minimum) and 600% @ 5mA (maximum)
  • Output type: transistor
  • Input type: DC
  • Maximum forward current: 50mA
  • Typical forward voltage: 1.15V
  • Rise/fall time: 4μs and 3μs, respectively.
  • Unique: provides reliable isolation between high voltage and low voltage circuits.
