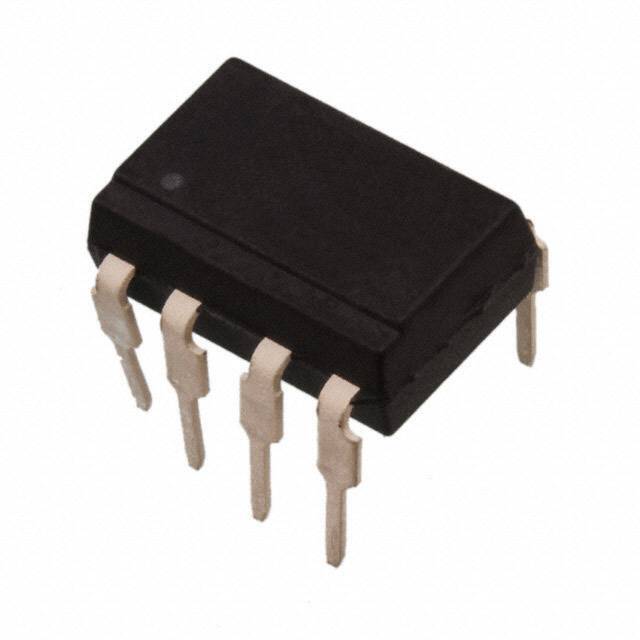

The TLP521-1GB is a photocoupler manufactured by Toshiba Semiconductor and Storage. It incorporates a gallium arsenide infrared emitting diode optically coupled to a silicon phototransistor. This configuration provides a high isolation voltage and efficient signal transfer, making it well-suited for applications that require electrical isolation between circuits.

Applications

• Programmable Logic Controllers (PLCs): Used for isolating input/output signals to protect sensitive control circuitry.
• Inverter Circuits: Provides isolation in power inverter control circuits, enhancing safety and performance.
• Switching Mode Power Supplies (SMPS): Isolates the primary and secondary sides for safety and noise reduction.
• General Purpose Inverters: Control signal isolation for motor control and other inverter-based applications.
• Industrial Automation Equipment: Used in industrial automation systems where electrical isolation is essential.

Features

• High Isolation Voltage: Offers a high degree of electrical isolation between input and output, ensuring safety and reliability.
• High Current Transfer Ratio (CTR): Ensures efficient signal transmission with minimal signal loss, improving overall performance.
• Compact Package: Space-saving design ideal for densely populated circuit boards and compact devices.
• Low Input Current: Requires minimal input current for operation, reducing power consumption and enhancing energy efficiency.
• Pb-Free (RoHS Compliant): Complies with environmental standards for lead-free manufacturing, contributing to environmental responsibility.

Benefits

• Enhanced Safety: Protects sensitive circuits from high voltage transients, surges, and electrical noise, increasing system reliability and safety.
• Improved Signal Integrity: Minimizes noise and interference, ensuring reliable signal transmission and accurate control.
• Reliable Performance: Ensures stable and consistent operation in diverse environmental conditions, enhancing system robustness and longevity.
• Space Saving: Compact package allows for use in space-constrained applications, providing greater design flexibility.
• Reduced Power Consumption: Low input current contributes to overall energy efficiency, reducing operating costs and environmental impact.

Additional Details

The TLP521-1GB features a minimum isolation voltage of 5000 Vrms. The current transfer ratio (CTR) is specified to ensure efficient signal transmission under various operating conditions. The operating temperature range is typically from -55°C to 100°C. The package is a 4-pin DIP (Dual In-line Package). The input forward voltage is around 1.2V, and the output collector-emitter voltage can range up to 80V.

This photocoupler is commonly utilized in industrial automation, power supplies, and various other applications where electrical isolation is crucial for ensuring safety, reliability, and high performance. Its robust design and high isolation capability make it a preferred choice for isolating sensitive circuits and enhancing system performance.
