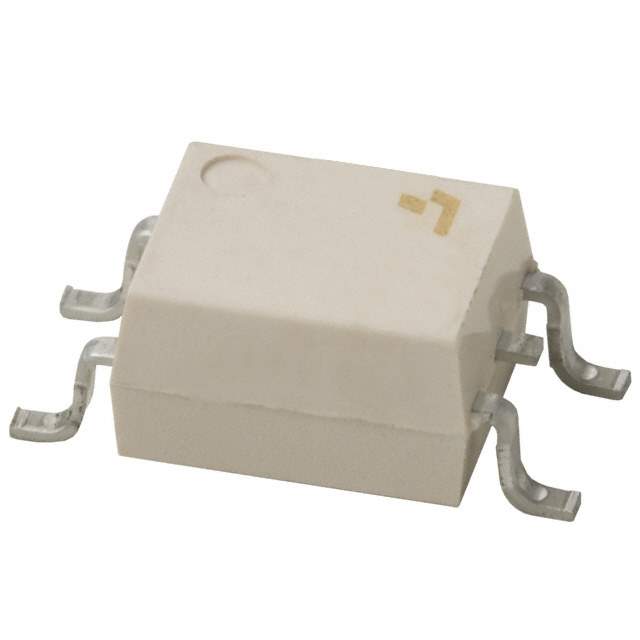

The TLP4172G is a Photorelay manufactured by Toshiba Semiconductor and Storage. A photorelay, also known as a solid-state relay (SSR), uses an LED and a phototransistor or photodiode to provide electrical isolation between the control circuit and the load circuit. This isolation is crucial in applications where high voltages or noisy environments could damage sensitive control electronics. The TLP4172G is characterized by its low on-resistance, high isolation voltage, and fast switching speed.

Applications:

• Industrial control systems: Switching AC or DC loads in PLCs and other control equipment.
• Test and measurement equipment: Isolating sensitive measurement circuits from high-voltage test points.
• Medical equipment: Providing electrical isolation for patient safety.
• Security systems: Switching alarm circuits and other security devices.
• Battery management systems: Disconnecting batteries in the event of a fault condition.

Features:

• High isolation voltage: Provides strong electrical isolation between the control and load circuits.
• Low on-resistance: Minimizes voltage drop and power dissipation.
• Fast switching speed: Enables rapid switching of loads.
• Small package: Allows for compact designs.
• AC/DC operation: Can switch both AC and DC loads.

Benefits:

• Enhanced safety: Protects control circuits from high voltages and transient events.
• Improved reliability: Eliminates mechanical wear associated with traditional electromechanical relays.
• Reduced size and weight: Enables the design of smaller and lighter devices.
• Lower power consumption: Consumes less power than electromechanical relays.
• Longer lifespan: Has a longer operating life than electromechanical relays.

Additional Details:

The TLP4172G's key specifications include its isolation voltage, load voltage, load current, on-resistance, and switching time. The isolation voltage indicates the maximum voltage that can be safely applied between the control and load circuits. The load voltage and load current specify the maximum voltage and current that the relay can switch. The on-resistance affects the voltage drop and power dissipation across the relay. The switching time determines how quickly the relay can turn on and off. Toshiba provides detailed datasheets with these specifications. External components, such as resistors, are often required to limit the LED current and protect the relay. Proper PCB layout is essential to maintain the isolation voltage and minimize noise coupling.
