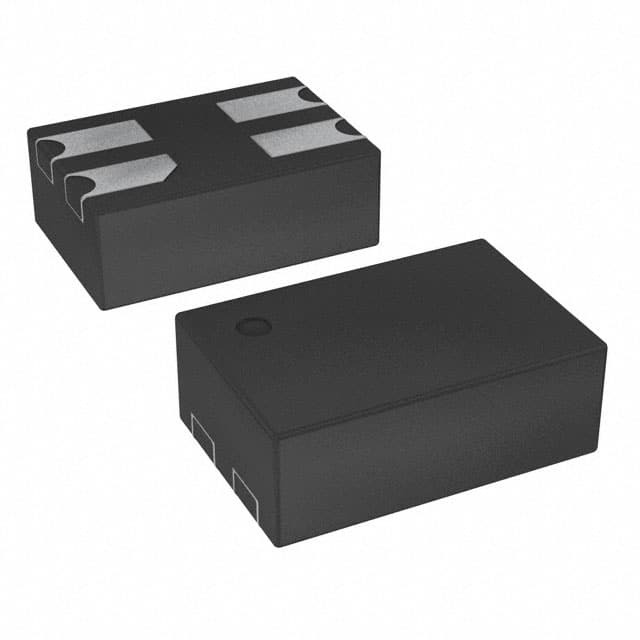

TLP3420(TP,F Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP3420(TP,F

Part No TLP3420(TP,F
Manufacturer Toshiba Semiconductor and Storage
Catalog Relays
Description Solid State Relays - PCB Mount Photorelay Voff=100V Ion=0.1A Ron=14Ohm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Toshiba
Packaging Cut Tape
Packaging MouseReel
Packaging Reel
Mounting Style PCB Mount
Load Current Rating 100 mA
Load Voltage Rating 100 VAC, 100 VDC
Relay Contact Form 1 Form A (SPST-NO)
Control Voltage Range 1.1 VDC to 1.4 VDC
Package / Case VSON-4
Output Type Photo MOSFET
Input Current 30 mA
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 110 C
Length 2.45 mm (0.096 in)
Width 1.45 mm (0.057 in)
Height 1.3 mm (0.051 in)
Series TLP3420
Contact Form SPST (1 Form A)
Product Solid State Relays
Termination Style SMD/SMT
Brand Toshiba
Input to Output Isolation Method Optocoupler
Moisture Sensitive Yes
Product Type SSR - Solid State Relays
Standard Pack Qty 3000
Subcategory Relays
Ultra Librarian 3D Model Ultra Librarian TLP3420(TP,F CAD Model

Description

The Toshiba Semiconductor and Storage TLP3420(TP,F is a reliable solid-state relay that is designed to deliver outstanding performance and durability.

  • Circuit: SPST-NO (1 Form A)
  • Maximum On-State Resistance: 14 Ohms
  • Package: 4-SMD (0.096", 2.45mm)
  • Package Type: Tape & reel
  • Supplier Device Package: 4-VSON (1.45x2.45)
