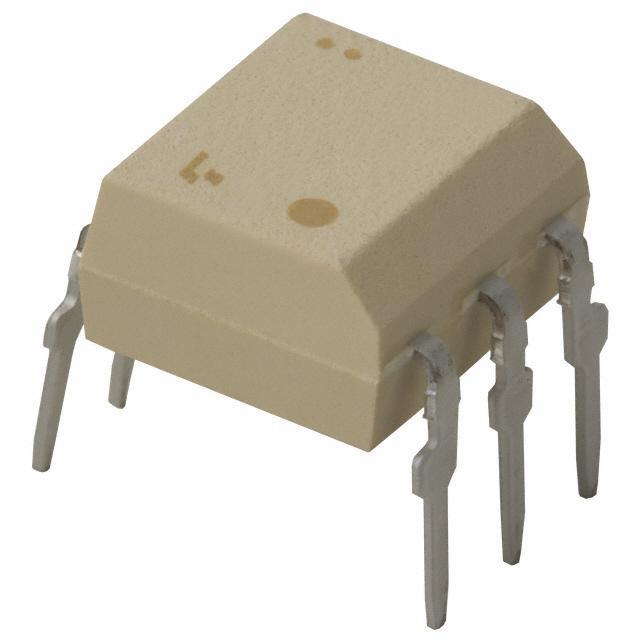

TLP331(BV,F) Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP331(BV,F)

Part No TLP331(BV,F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV TRANS W/BASE 6DIP / Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Toshiba Semiconductor and Storage
Packaging Tube
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Minimum) 200% @ 1mA
Current Transfer Ratio (Maximum) 1200% @ 1mA
Turn On / Turn Off Time (Typ) 10μs, 8μs
Rise / Fall Time (Typ) 8μs, 8μs
Input Type DC
Output Type Transistor with Base
Output Voltage MAX 55V
Output Current per Channel 50mA
Voltage - Forward (Vf) (Typ) 1.15V
Current - DC Forward (If) (Maximum) 50mA
Vce Saturation (Maximum) 400mV
Operating Temperature Range -55°C ~ 100°C
Mounting Style Through Hole
Package 6-DIP (0.300", 7.62mm)
Manufacturer Package 6-DIP
Win Source Part Number 797058-TLP331(BV,F)
Popularity Medium
Supply and Demand Status Limited
Family Name TLP331
Introduction Date May 16, 2001
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian TLP331(BV,F) CAD Model

Description

The Toshiba Semiconductor and Storage TLP331(BV,F) is an isolator designed for DC input type applications.

  • Package: 6-DIP (0.300", 7.62mm)
  • Mounting: Through Hole
  • Voltage Forward: 1.15V (typical)
  • Rise/Fall Time: 8μs, 8μs
  • Number of Channels: 1
  • Voltage Isolation: 5000Vrms
  • Output Voltage MAX: 55V
  • Output Current Per Channel: 50mA
  • Current Transfer Ratio (minimum): 200% @ 1mA
  • Current Transfer Ratio (maximum): 1200% @ 1mA
