Same model may have multiple batches, images only for reference.

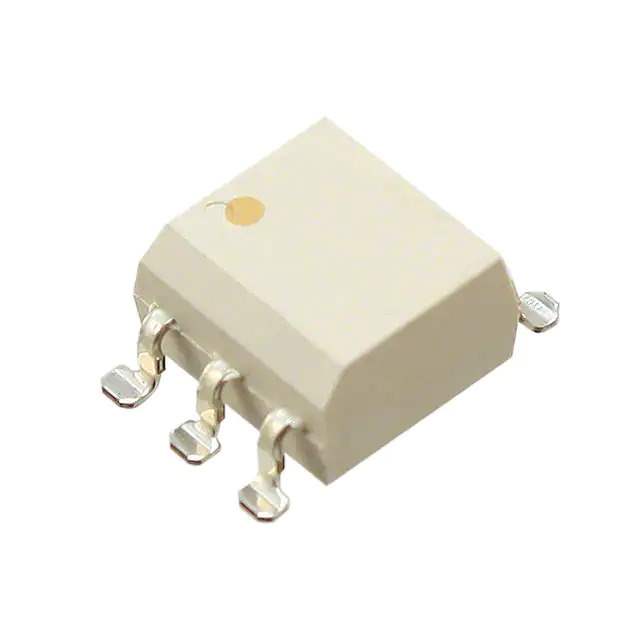

TLP3031(S,C,F) Real Image
Same model may have multiple batches, images only for reference.

TLP3031(S,C,F)

Part No TLP3031(S,C,F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Triac, SCR Output
Description OPTOCOUPLER TRANS / Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP (Cut), 5 Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Triac, SCR Output Optoisolators
Mfr Toshiba Semiconductor and Storage
Package Bulk
Product Status Obsolete
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Voltage - Isolation 5000Vrms
Voltage - Off State 250 V
Current - LED Trigger (Ift) (Max) 15mA
Current - On State (It (RMS)) (Max) 100 mA
Mounting Type Through Hole
Package / Case 6-DIP (0.300", 7.62mm), 5 Leads
Supplier Device Package 6-DIP (Cut), 5 Lead
Approval Agency SEMKO, UR
Base Product Number TLP3031
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 900037-TLP3031(S,C,F)
Ultra Librarian 3D Model Ultra Librarian TLP3031(S,C,F) CAD Model

Description

The TLP3031(S,C,F is an optoisolator triac manufactured by Toshiba Semiconductor and Storage.

  • Series: TLP3031
  • Category: isolators - optoisolators - triac, SCR output optoisolators
  • Input Type: AC input type
  • Maximum Off-State Voltage: 250V
  • Maximum On-State Current: 100 mA
  • Channel: single channel
  • Isolation Voltage: 5000Vrms
  • Current Trigger for the LED: maximum 15mA
  • Package Type: 6-DIP (0.300", 7.62mm) with 5 leads
  • Mounting: through a hole
  • Status: obsolete and not recommended for new designs
  • Approval: SEMKO and UR
