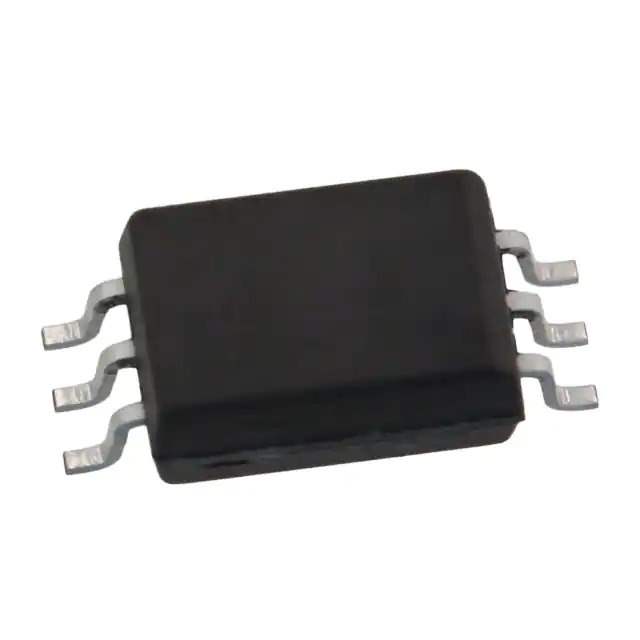

ACPL-W483-000E Real Image
Same model may have multiple batches, images only for reference.

ACPL-W483-000E

Part No ACPL-W483-000E
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description OPTOISO 5KV PUSH PULL 6SO / Logic Output Optoisolator Push-Pull, Totem Pole 5000Vrms 1 Channel 30kV/μs CMTI 6-SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Logic Output Optoisolators
Mfr Broadcom Limited
Package Tube
Product Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 30kV/µs
Input Type DC
Output Type Push-Pull, Totem Pole
Current - Output / Channel 50 mA
Propagation Delay tpLH / tpHL (Max) 120ns, 120ns
Rise / Fall Time (Typ) 6ns, 6ns
Voltage - Forward (Vf) (Typ) 1.5V
Current - DC Forward (If) (Max) 10mA
Voltage - Supply 4.5V ~ 30V
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Surface Mount
Package / Case 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package 6-SO
Base Product Number ACPL-W483
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 744182-ACPL-W483-000E
Ultra Librarian 3D Model Ultra Librarian ACPL-W483-000E CAD Model

Description

The ACPL-W483-000E is a logic output optoisolator that belongs to the Isolators - Optoisolators category. Manufactured by Broadcom Limited.

  • Input: DC
  • Output Type: Push-pull, totem pole
  • Voltage Isolation: 5000Vrms
  • Current Output: 50mA
  • Maximum Forward Current: 10mA
  • Rise and Fall Time: 6ns
  • Package: 6-SOIC
  • Operating Temperature: -40°C to 105°C
  • Product Status: Active
