The TJ200F04M3L, LXHQ is a P-channel MOSFET transistor with a drain to source voltage of 40V and a continuous drain current of 200A @ 25°C.

• Drain to Source Voltage: 40V
• Continuous Drain Current: 200A @ 25°C
• Rds on (Max) @ Id, Vgs: 1.8mOhm @ 100A, 10V
• Vgs(th) (Max) @ Id: 3V @ 1mA
• Gate Charge (Qg) (Max) @ Vgs: 460 nC @ 10V
• Input Capacitance (Ciss) (Max) @ Vds: 1280 pF @ 10V

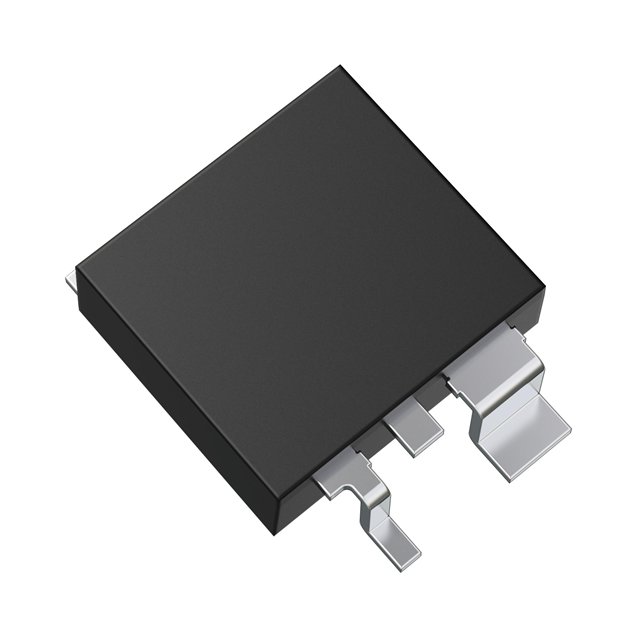

• Package: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
• Mounting: SMD (SMT)
• Maximum Power Dissipation: 375W (Tc)
• Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
• Temperature Range: 175°C
• Manufacturer: Toshiba Semiconductor and Storage
