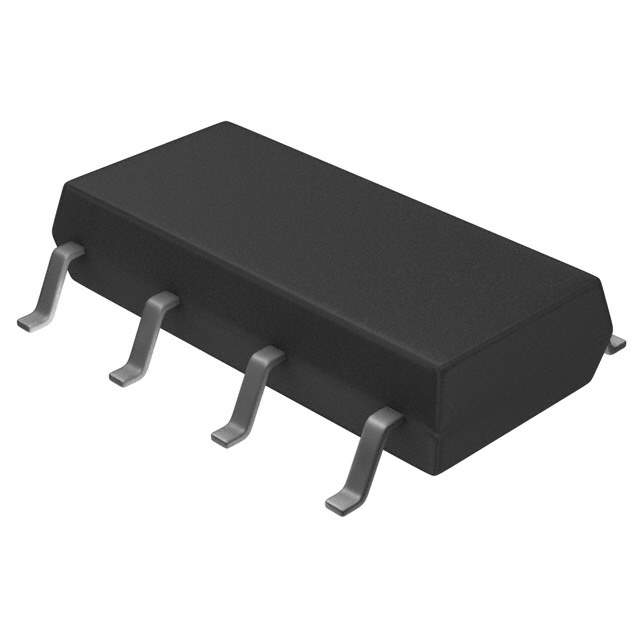

TC7W02F(TE12L) Real Image
Same model may have multiple batches, images only for reference.

TC7W02F(TE12L)

Part No TC7W02F(TE12L)
Manufacturer Toshiba Semiconductor and Storage
Catalog Logic - Gates and Inverters
Description IC GATE NOR 2CH 2-INP 8-SOP
Datasheet
TC7W02F(TE12L) Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Toshiba Semiconductor and Storage
Logic Type NOR Gate
Number of Circuits 2
Number of Inputs 2
Supply Voltage - Operating 2 V to 6 V
Current - Quiescent (Max) 1μA
Current - Output High, Low 5.2mA, 5.2mA
Logic Level - Low 0.5 V to 1.8 V
Logic Level - High 1.5 V to 4.2 V
Max Propagation Delay @ V, Max CL 13ns @ 6V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 8-SOP
Dimension 8-SOIC (0.122", 3.10mm Width)
Win Source Part Number 056576-TC7W02F(TE12L)
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TC7W02F(TE12L) CAD Model

Description

The TC7W02F(TE12L) is a NOR gate logic IC manufactured by Toshiba Semiconductor and Storage.

  • Supply and Demand Status: limited
  • Application: designed for use in various electronic devices that require logic functions
  • Quiescent Current: 1μA
  • Output Current: 5.2mA
  • Operating Voltage Range: 2V to 6V
  • Maximum Propagation Delay: 13ns @ 6V and 50pF
  • Package: 8-SOP case/package
