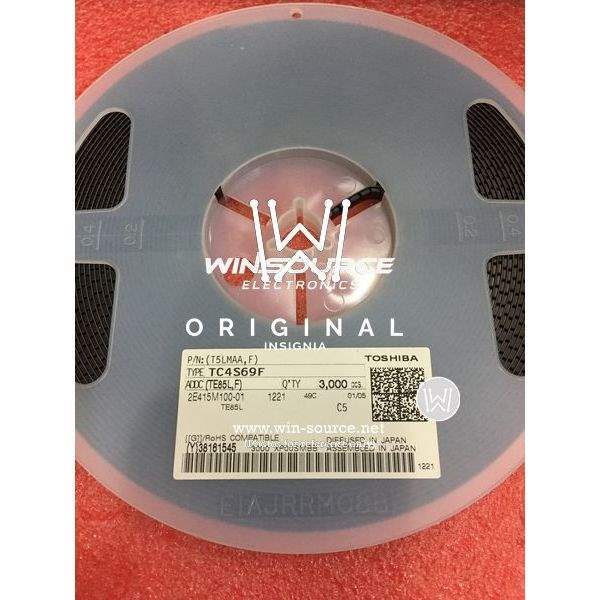

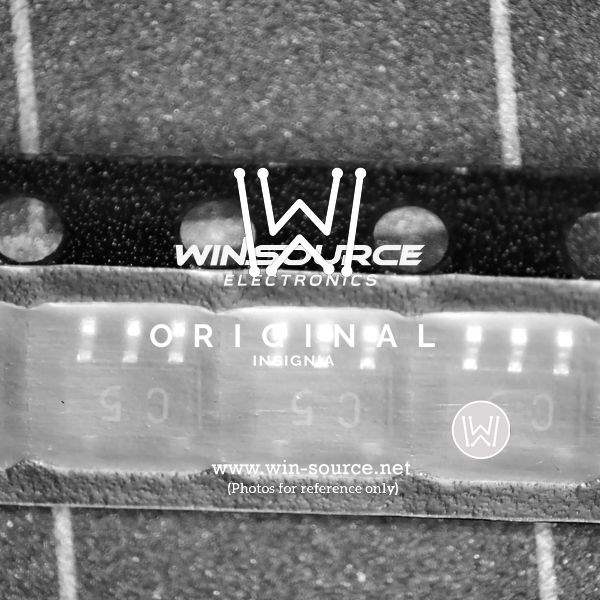

TC4S69F Toshiba Semiconductor and Storage TC4S69F Real Image TC4S69F Real Image TC4S69F label picture 2 TC4S69F real image TC4S69F real image 2
Same model may have multiple batches, images only for reference.
TC4S69F Toshiba Semiconductor and Storage TC4S69F Real Image TC4S69F Real Image TC4S69F label picture 2 TC4S69F real image TC4S69F real image 2
TC4S69F Toshiba Semiconductor and Storage TC4S69F Real Image TC4S69F Real Image TC4S69F label picture 2 TC4S69F real image TC4S69F real image 2
Same model may have multiple batches, images only for reference.

TC4S69F

Part No TC4S69F
Manufacturer Toshiba Semiconductor and Storage
Catalog Logic - Gates and Inverters
Description Inverter 1-Element CMOS 5-Pin SMV / IC GATE INVERTER SMV
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Obsolete(EOL)
Logic Type Inverter
Number of Circuits 1
Number of Inputs 1
Supply Voltage - Operating 3 V to 18 V
Current - Quiescent (Max) 1μA
Current - Output High, Low 3.4mA, 3.4mA
Logic Level - Low 1.5 V to 4 V
Logic Level - High 3.5 V to 11 V
Max Propagation Delay @ V, Max CL 80ns @ 15V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package SMV
Dimension SC-74A, SOT-753
Win Source Part Number 094981-TC4S69F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name TC4S69
Introduction Date January 04, 1997
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian TC4S69F CAD Model

Description

It has sufficient supply and demand status.

  • Category: Integrated Circuit, Logic Gates and Inverters
  • Logic Type: Inverter
  • Input: 1
  • Current - Output High and Low: 3.4mA, 3.4mA
  • Max Propagation Delay @ V, Max CL: 80ns @ 15V and 50pF
  • Current Quiescent: 1μA
  • Manufacturer: Toshiba Semiconductor and Storage
  • Win Source Part Number: 094981-TC4S69F
