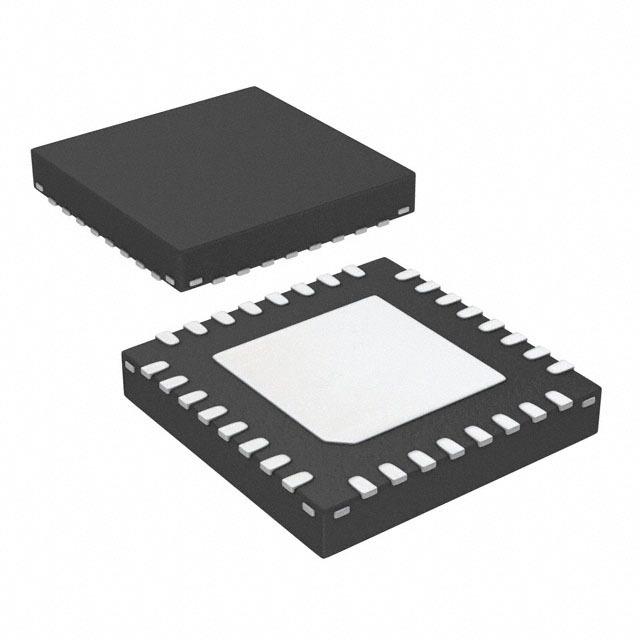

TB6569FTG Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TB6569FTG

Part No TB6569FTG
Manufacturer Toshiba Semiconductor and Storage
Catalog PMIC - Motor Drivers, Controllers
Description Motor Driver Bi-CMOS Parallel, PWM 32-VQFN (5x5)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits(ICs)
Family PMIC - Motor Drivers, Controllers
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel(TR)
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (2)
Interface Parallel, PWM
Technology Bi-CMOS
Applications General Purpose
Current - Output 1.5A
Operating Supply Voltage 10 V ~ 45 V
Voltage - Load 10 V ~ 45 V
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Style SMD/SMT
Package 32-VFQFN Exposed Pad
Manufacturer Device Package 32-VQFN (5x5)
Win Source Part Number 212584-TB6569FTG
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TB6569FTG CAD Model

Description

This electronic component is manufactured by Toshiba Semiconductor and Storage, and its Win Source Part Number is 212584-TB6569FTG.

  • Type: Integrated circuit (IC) belonging to the PMIC - Motor Drivers, Controllers family.
  • Packaging: Reel (TR)
  • Mounting Style: SMD/SMT
  • Operating Temperature Range: -40°C ~ 85°C (TA)
  • Package: 32-VFQFN Exposed Pad
  • Manufacturer Device Package: 32-VQFN (5x5)
  • Application: general-purpose product
  • Technology: Bi-CMOS
  • Current Output: 1.5A
  • Operating Supply Voltage: 10 V ~ 45 V
  • Function: driver - fully integrated, control, and power stage
  • Interface: parallel, PWM
  • Output Configuration: half bridge (2)
  • Voltage Load: 10 V ~ 45 V
  • Motor Type: brushed DC
  • Step Resolution: not specified.
