The HN1D01FU is a rectifier diode array manufactured by Toshiba Semiconductor and Storage. It consists of two rectifier diodes configured in a common cathode configuration, providing efficient rectification for various electronic applications.

Applications

• Power supplies
• DC-DC converters
• Reverse polarity protection
• Rectification in various electronic circuits
• Adaptors

Features

• Repetitive Peak Reverse Voltage (VRRM): 200V
• Average Forward Current (IF(AV)): 1A per diode
• Forward Voltage (VF): 0.95V (typical)
• Reverse Leakage Current (IR): 10µA (maximum)
• Operating Temperature Range: -40°C to +150°C

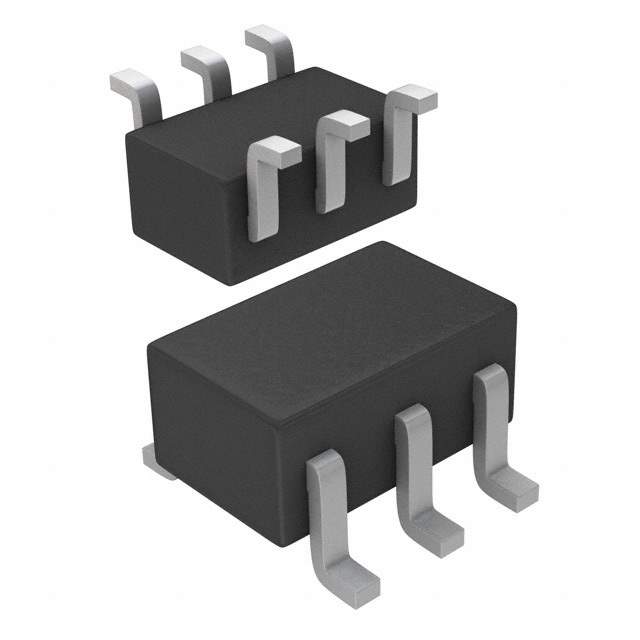

• Package: S-FLAT™ (Small Flat Lead)

Benefits

• Provides efficient rectification with low forward voltage drop, improving power conversion efficiency.
• Small surface mount package (S-FLAT™) allows for high-density board mounting.
• High reverse voltage capability ensures reliable operation in high-voltage applications.
• Suitable for use in a wide range of operating temperatures.
• Dual diode configuration offers versatility in circuit design.

Additional Details

The HN1D01FU is designed with a focus on minimizing forward voltage drop and reverse leakage current, enhancing overall efficiency and reliability. The S-FLAT™ package provides excellent thermal performance while maintaining a compact footprint. This diode array is commonly used in power supplies, DC-DC converters, and other applications where efficient rectification is required. The dual diode configuration allows for flexibility in circuit design, enabling both full-wave and half-wave rectification schemes. The high operating temperature range makes it suitable for use in harsh environments. Its low forward voltage characteristics contribute to improved energy efficiency in the application circuits.

This component is often found in power management circuits of consumer electronics, industrial equipment, and automotive systems where efficient and reliable rectification is necessary. Its small size and robust performance make it a popular choice for designers.
