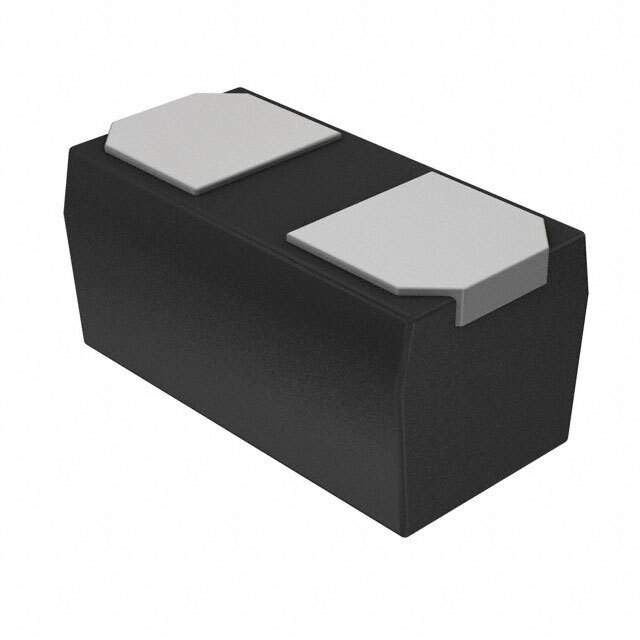

The DF2S7MSL is a Transient Voltage Suppressor (TVS) diode manufactured by Toshiba Semiconductor and Storage. This diode is designed to protect sensitive electronic circuits and components from damage caused by transient voltage events such as electrostatic discharge (ESD), electrical fast transients (EFT), and lightning surges. It offers a rapid response time and a low clamping voltage to ensure effective protection of downstream circuitry.

Applications

• ESD protection for data lines in portable devices.
• Surge protection for I/O ports in computers and peripherals.
• Voltage transient protection in automotive systems.
• Protection of sensitive components in industrial control equipment.
• Overvoltage protection in consumer electronics products.

Features

• Fast response time to quickly suppress voltage transients.
• Low clamping voltage to limit voltage exposure to protected components.
• Small surface-mount package for compact designs.
• High surge current capability for robust protection against strong transients.
• Low leakage current to minimize power consumption.
• RoHS compliant, ensuring environmental safety.

Benefits

• Increased reliability of electronic devices.
• Reduced failure rates due to voltage transients.
• Improved system performance and stability.
• Minimized downtime and maintenance costs.
• Easy integration into automated manufacturing processes.

Additional Details

The DF2S7MSL TVS diode typically utilizes silicon avalanche technology to provide a fast and reliable response to overvoltage conditions. Its low clamping voltage ensures that sensitive components are not exposed to excessive voltage stress. The diode is designed for surface mount assembly, allowing for efficient and cost-effective manufacturing. It meets industry standards for electrical performance and environmental compliance. Detailed specifications, including peak pulse power, reverse standoff voltage, and clamping voltage, can be found in the manufacturer's datasheet.
