Same model may have multiple batches, images only for reference.

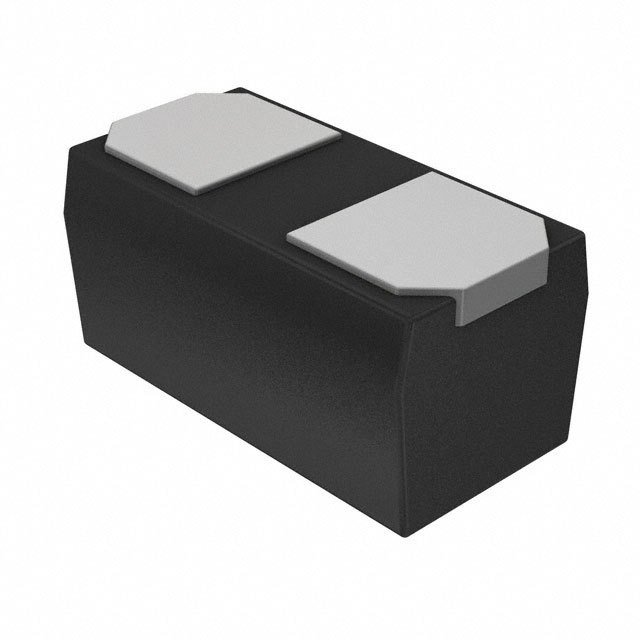

DF2B7M2SL,L3F Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

DF2B7M2SL,L3F

Part No DF2B7M2SL,L3F
Manufacturer Toshiba Semiconductor and Storage
Catalog TVS - Diodes
Description TVS DIODE 5VWM 20VC
Datasheet
DF2B7M2SL,L3F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 20V
Peak Pulse Current(Ippm) 2A (8/20μs)
Power Dissipation - Pd 40W
Applications General Purpose
Capacitance @ Frequency 0.2pF @ 1MHz
Mounting SMD (SMT)
Case / Package SL2
Win Source Part Number 1032927-DF2B7M2SL,L3F
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DF2B7M2SL,L3F CAD Model

Description

The Toshiba Semiconductor and Storage DF2B7M2SL,L3F is a steering (rail to rail) type circuit protection component that is designed for general-purpose applications.

  • Packaging: Reel - TR
  • Mounting: SMD (SMT)
  • Channel: Unidirectional
  • Capacitance: 0.2pF @ 1MHz
  • Supply and Demand Status: Balanced
  • Popularity: Medium
