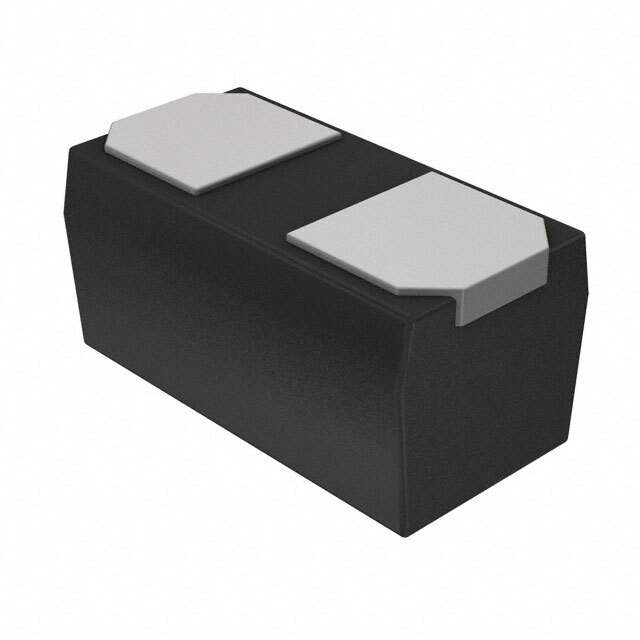

DF2B7ASL,L3F Real Image
Same model may have multiple batches, images only for reference.

DF2B7ASL,L3F

Part No DF2B7ASL,L3F
Manufacturer Toshiba Semiconductor and Storage
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 20VC SL2 / 20V Clamp 4A (8/20μs) Ipp Tvs Diode Surface Mount SL2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Toshiba Semiconductor and Storage
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5.5V
Voltage - Breakdown (Min) 5.8V
Voltage - Clamping (Max) @ Ipp 20V
Current - Peak Pulse (10/1000µs) 4A (8/20µs)
Power - Peak Pulse 80W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 8.5pF @ 1MHz
Temperature Range - Operating 150°C (TJ)
Mounting Type Surface Mount
Package / Case 0201 (0603 Metric)
Supplier Device Package SL2
Base Product Number DF2B7
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 852497-DF2B7ASL,L3F
Ultra Librarian 3D Model Ultra Librarian DF2B7ASL,L3F CAD Model

Description

The DF2B7ASL is a zener diode designed for transient voltage suppression applications.

  • Reverse Standoff Voltage: 5.5V
  • Breakdown Voltage: 5.8V
  • Clamping Voltage: 20V
  • Peak Pulse Power: 80W
  • Capacitance: 8.5pF @ 1MHz
  • Peak Pulse Current: 4A
  • Package: Surface Mount 0201
  • Application: General Purpose
  • Standard Package: 10,000 pcs
  • Manufacturer: Toshiba Semiconductor and Storage
