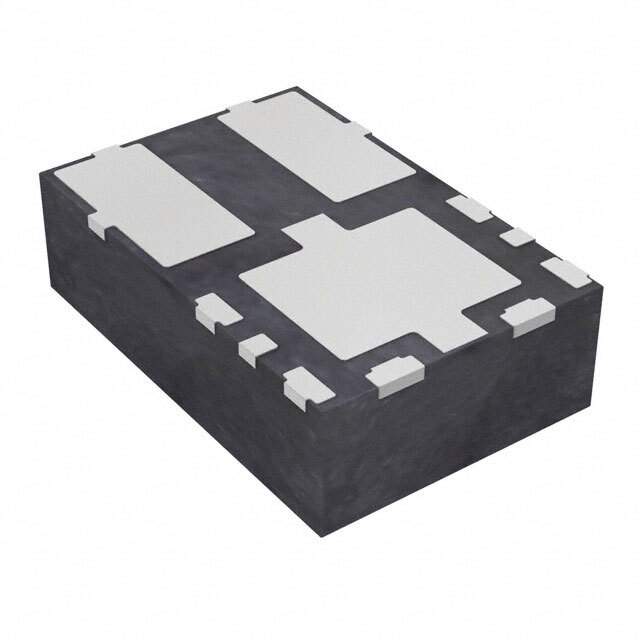

XCL212B082DR Real Image
Same model may have multiple batches, images only for reference.

XCL212B082DR

Part No XCL212B082DR
Manufacturer Torex Semiconductor Ltd
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.9-6V / Non-Isolated PoL Module DC DC Converter 1 Output 0.9 ~ 6V 2A 2.7V - 6V Input
Datasheet
XCL212B082DR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Torex Semiconductor Ltd
Series XCL212
Package Tape & Reel
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.7V
Voltage - Input (Max) 6V
Voltage - Output 1 0.9 ~ 6V
Current - Output (Max) 2A
Applications ITE (Commercial)
Features OCP, OTP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 94%
Mounting SMD (SMT)
Package / Case 11-PowerLQFN Module
Dimension 0.12" L x 0.19" W x 0.05" H (3.1mm x 4.7mm x 1.3mm)
Supplier Device Package USP-11B01
Base Product Number XCL212
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 893-1211-6,893-1211-1,893-1211-2
Standard Package 1,000
Win Source Part Number 1179801-XCL212B082DR
Ultra Librarian 3D Model Ultra Librarian XCL212B082DR CAD Model

Description

The XCL212B082DR is a non-isolated PoL module designed for use in power supplies - board mount applications manufactured by Torex Semiconductor Ltd.

  • Module Type: PoL
  • Isolation: Non-Isolated
  • Efficiency: 94%
  • Maximum Output Current: 2A
  • Voltage Input: 2.7V to 6V
  • Voltage Output: 0.9V to 6V
  • Package: Tape and Reel
  • Dimensions: 0.12" L x 0.19" W x 0.05" H (3.1mm x 4.7mm x 1.3mm)
