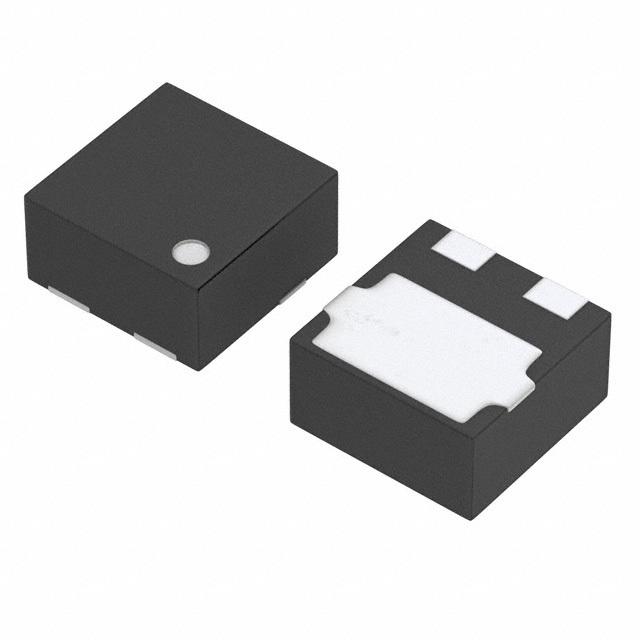

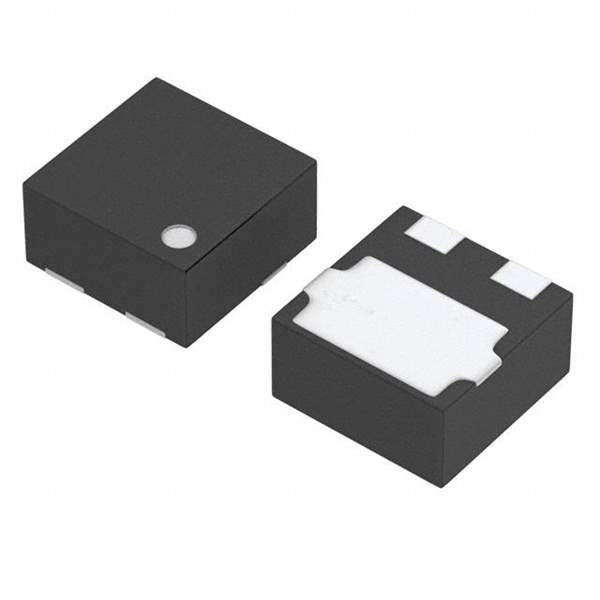

The XC61GC1802HR-G is a voltage detector IC produced by Torex Semiconductor Ltd. This component is designed to monitor a voltage supply and generate a reset signal when the voltage falls below a predetermined threshold, in this case approximately 1.8V. This functionality is vital in protecting microcontrollers and other sensitive electronic components from damage or erratic behavior caused by undervoltage conditions.

Applications

• Microcontroller Reset Circuits
• CPU Voltage Monitoring
• Power Supply Voltage Supervision
• Battery-Powered Devices
• Industrial Control Systems

Features

• High-Accuracy Voltage Detection
• Low Power Consumption
• Small Package Size (SOT-25 or equivalent)
• Wide Operating Temperature Range
• Built-in Hysteresis
• CMOS Output

Benefits

• Protects sensitive components from damage due to undervoltage conditions.
• Ensures proper system operation by providing a reliable reset signal.
• Prolongs battery life in portable applications due to its low current draw.
• Simplifies circuit design with its integrated functionality.
• Offers accurate voltage monitoring, preventing false triggering.
• Improves overall system reliability.

The XC61GC1802HR-G features high-precision voltage detection with minimal power consumption, making it well-suited for battery-powered applications and energy-efficient designs. The integrated hysteresis prevents unstable output and ensures a clean reset signal, even in noisy environments. Torex Semiconductor Ltd. is a reputable manufacturer known for producing high-quality and dependable components, making the XC61GC1802HR-G a reliable choice for voltage detection applications. Its small form factor simplifies integration into designs where space is limited.
