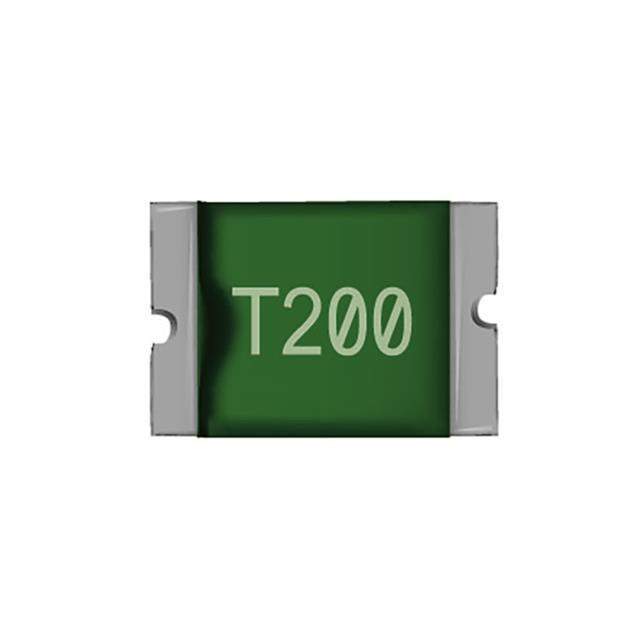

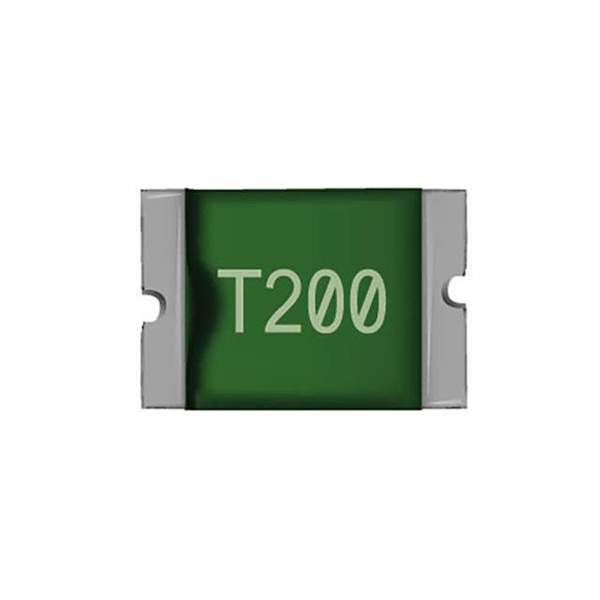

KMC2S050RY Real Image
Same model may have multiple batches, images only for reference.

KMC2S050RY

Part No KMC2S050RY
Manufacturer Thinking Electronic Industrial Co.,Ltd
Catalog PTC Resettable Fuses
Description Polymer PTC 0.5A Resettable Fuse / Polymeric PTC Resettable Fuse 6V 500 mA Ih Surface Mount 0805 (2012 Metric), Concave
Datasheet
KMC2S050RY Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Thinking Electronic Industrial Co.,Ltd
Series KMC
Package Tape & Reel (TR)
Type Polymeric
Voltage - Max 6V
Current - Hold (Ih) (Max) 500 mA
Current - Trip (It) 1 A
Current - Max 100 A
Time to Trip 100 ms
Resistance - Initial (Ri) (Min) 150 mOhms
Resistance - Post Trip (R1) (Max) 850 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric), Concave
Size / Dimension 0.083" L x 0.053" W (2.10mm x 1.35mm)
Height - Seated (Max) -
Thickness (Max) 0.033" (0.85mm)
Lead Spacing -
Approval Agency cUL, TUV, UL
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
HTSUS 8504.50.4000
Standard Package 1 pcs
Win Source Part Number 1382424-KMC2S050RY
Ultra Librarian 3D Model Ultra Librarian KMC2S050RY CAD Model

Description

The 1382424-KMC2S050RY is a PTC resettable fuse from the KMC series. It is a polymeric type fuse designed for circuit protection.

  • Maximum Voltage: 6V
  • Maximum Current: 100A
  • Size: 0.083" L x 0.053" W (2.10mm x 1.35mm)
  • Mounting Type: Surface Mount
  • Thickness: 0.033" (0.85mm)
  • Package: Concave
  • Time to Trip: 100ms
  • Initial Resistance: 150mOhms
  • Maximum Resistance (After Trip): 850mOhms
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: Thinking Electronic Industrial Co., Ltd
