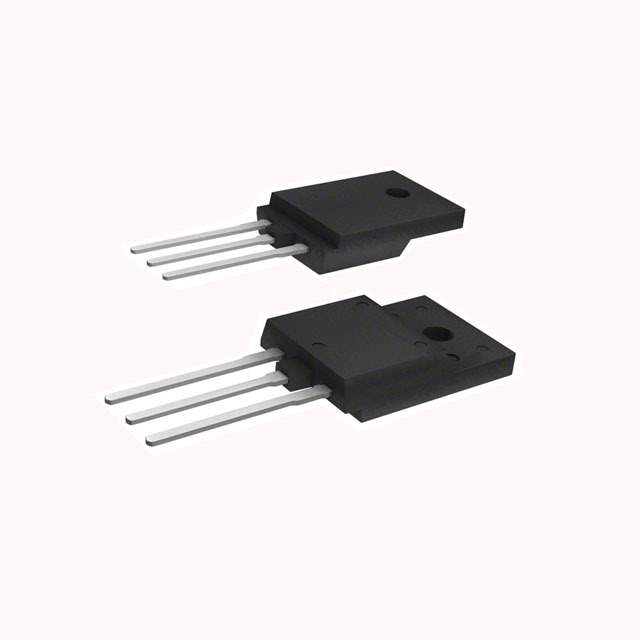

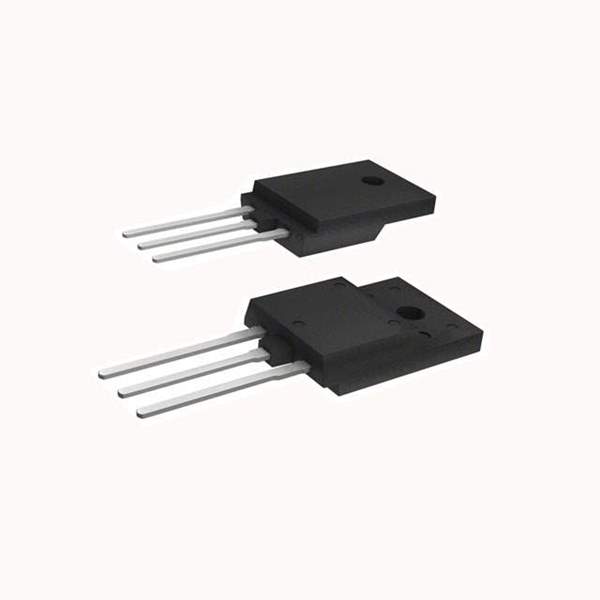

The L4204S is a rectifier diode array manufactured by Thinki Semiconductor Co., Ltd. It consists of multiple rectifier diodes integrated into a single package, designed to efficiently convert AC voltage to DC voltage. This array is commonly used in power supplies, adapters, and other electronic devices requiring rectification.

Applications

• Power Supplies: Used in AC-DC power supplies for converting mains AC voltage to a stable DC voltage for powering electronic devices.
• Adapters: Employed in wall adapters and chargers for converting AC voltage to DC voltage for charging batteries and powering portable devices.
• LED Lighting: Utilized in LED lighting systems for rectifying the AC voltage to drive the LEDs.
• Motor Control Circuits: Integrated into motor control circuits for providing the DC voltage required for motor operation.
• Renewable Energy Systems: Used in solar inverters and wind turbine converters for rectifying the AC voltage generated by these systems.

Features

• Multiple Diodes in a Single Package: Simplifies circuit design and reduces board space requirements.
• High Surge Current Capability: Withstands high surge currents during startup and transient events.
• Low Forward Voltage Drop: Minimizes power loss and improves efficiency.
• Fast Recovery Time: Enables efficient rectification at high frequencies.
• High Reliability: Designed for long-term, reliable operation.

Benefits

• Increased Efficiency: Low forward voltage drop minimizes power losses, leading to higher efficiency.
• Simplified Circuit Design: Integration of multiple diodes simplifies circuit layout and reduces component count.
• Reduced Board Space: Compact package saves valuable board space in electronic devices.
• Improved Reliability: High surge current capability and robust design ensure reliable operation.
• Cost-Effective Solution: Provides a cost-effective solution for rectification needs.

Additional Details

The L4204S is typically available in various package types, such as DO-214AA (SMB). The key parameters include the maximum repetitive peak reverse voltage (VRRM), the maximum average forward rectified current (IF(AV)), and the maximum surge current (IFSM). The operating temperature range is typically from -55°C to +150°C. The datasheet provides detailed information on electrical characteristics, thermal resistance, and package dimensions.
