ULN2003AID High-Voltage, High-Current Darlington Transistor Array

The ULN2003AID, manufactured by Texas Instruments, is a versatile and robust integrated circuit that features a high-voltage, high-current Darlington transistor array. This device is designed to efficiently drive a wide range of loads, including solenoids, relays, DC motors, LED displays, and lamps. With its ability to handle up to 500 mA per channel and a maximum voltage of 50V, it is an ideal choice for interfacing between low-level logic circuits and higher-power loads.

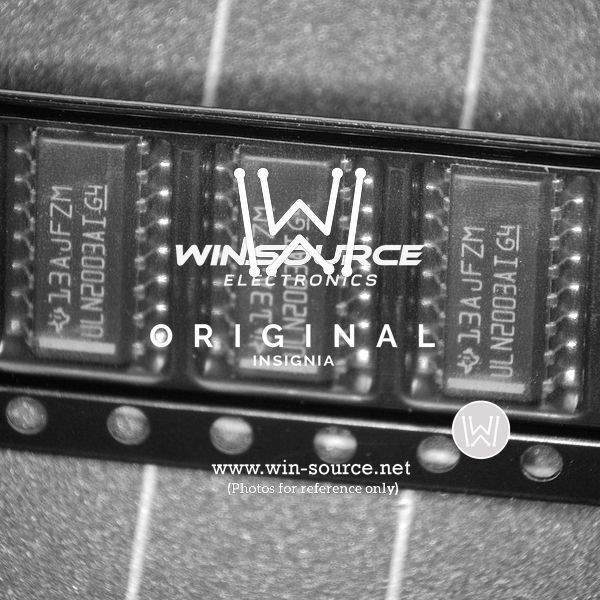

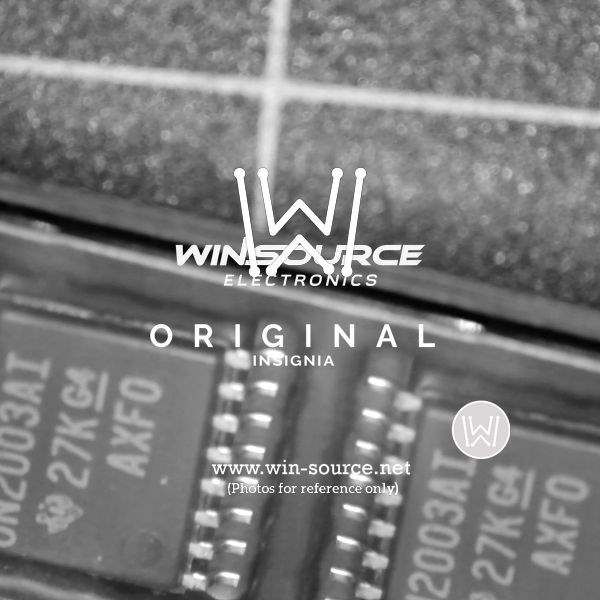

The ULN2003AID comes in a standard 16-pin SOIC package, which is suitable for surface-mount technology (SMT) and offers a compact footprint for space-constrained applications. Each of the seven Darlington pairs in the array can be independently driven from standard TTL or 5V CMOS logic signals, making it highly compatible with a broad range of microcontrollers and digital systems.

Key features of the ULN2003AID include:

• Seven Darlington pairs per package
• Output current 500 mA per driver (600 mA peak)
• Output voltage 50V
• Input compatible with various types of logic, including TTL and CMOS
• Integral suppression diodes for inductive loads
• Outputs can be paralleled for higher current capability

One of the notable benefits of the ULN2003AID is the inclusion of built-in flyback diodes for inductive load driving, which provides protection against voltage spikes that occur when the inductive load is switched off. This feature significantly enhances the reliability and lifespan of both the load and the driver itself.

Whether you are designing office automation machines, home appliances, automotive applications, or any system requiring a reliable interface between delicate logic circuits and power loads, the ULN2003AID from Texas Instruments provides a practical and efficient solution. Its proven design, ease of use, and integration of protective features make it a go-to component for electrical engineers and hobbyists alike.
