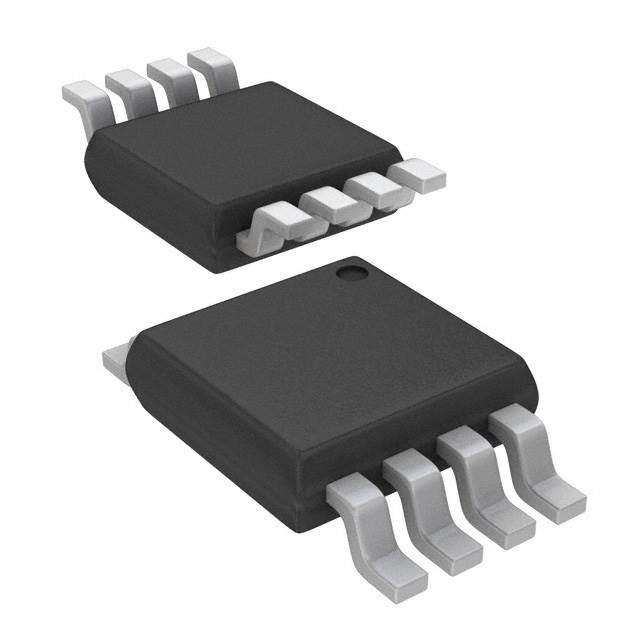

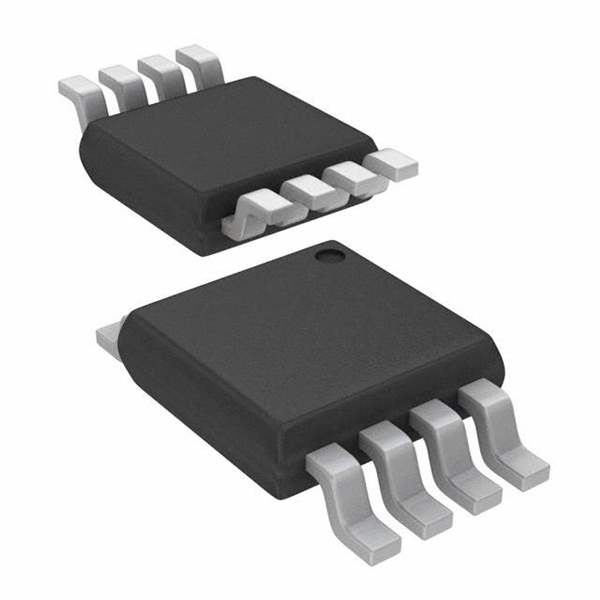

Product Overview: UCC3809PTR-1 by Texas Instruments

The UCC3809PTR-1 is a versatile and efficient power management integrated circuit (IC) designed by Texas Instruments, renowned for their innovation in semiconductor technology. This IC is part of the UCC3809 family and is specifically engineered to provide reliable and precise control for switch-mode power supplies.

Key Features

• Programmable Switching Frequency: The UCC3809PTR-1 allows designers to set the operating frequency anywhere from 4 kHz to 1 MHz, providing flexibility to optimize for efficiency, size, and performance of the power supply.
• Peak Current Mode Control: It incorporates peak current mode control which enhances the response to load transients and simplifies loop compensation.
• Low Startup and Operating Current: The device features a low startup current of typically 0.5 µA and a low operating current of typically 1 mA, making it suitable for energy-efficient applications.
• Under-Voltage Lockout (UVLO): An adjustable UVLO ensures the IC operates at the correct voltage levels, preventing damage and improving system reliability.
• Soft Start: The soft-start feature limits inrush current during startup, contributing to the longevity of the power supply components.

Applications

The UCC3809PTR-1 is designed to meet the needs of a wide array of applications, including:

• Offline power converters
• DC-DC converters
• Telecom and datacom power systems
• Industrial power supplies
• Consumer electronics

Package and Availability

The UCC3809PTR-1 is available in a TSSOP-8 (Thin Shrink Small Outline Package) which is ideal for space-constrained applications. Its small footprint and surface-mount package enable compact and efficient designs.

Quality and Support

As with all Texas Instruments products, the UCC3809PTR-1 is manufactured to high standards ensuring reliability and performance. Texas Instruments provides comprehensive technical support and documentation, making the integration of the UCC3809PTR-1 into your power management solutions a seamless experience.
