Introducing the UCC21540ADWR by Texas Instruments

The UCC21540ADWR is a state-of-the-art isolated dual-channel gate driver designed by Texas Instruments to provide robust and efficient solutions for a variety of power applications. This innovative component is engineered to drive high-power, high-speed MOSFETs and IGBTs, making it an ideal choice for applications such as switched-mode power supplies, motor drives, and power inverters.

The UCC21540ADWR distinguishes itself with its remarkable isolation capabilities. It features 5.7 kVRMS isolation voltage for 1 minute per UL1577, ensuring safe operation even in high-voltage environments. This is critical for protecting both the control circuits and the human operators from electrical shocks and system malfunctions.

With its dual-channel configuration, this gate driver can support both high-side and low-side gate drive applications. Its channels are independently controlled and offer a maximum peak output current of ±4 A, providing the power necessary to switch transistors on and off with speed and precision. The UCC21540ADWR also boasts a split output configuration that helps optimize the turn-on and turn-off times to reduce switching losses and improve efficiency.

One of the key features of the UCC21540ADWR is its robustness against negative transient voltage, thanks to its negative VS transient immunity of -100 V for 400 ns. This ensures reliable operation even under harsh conditions, where power supply fluctuations are common. Additionally, the device includes UVLO (Under Voltage Lock-Out) features for both VCCI and VDD, which protect the device and the power system by preventing operation when the input voltage is out of the specified range.

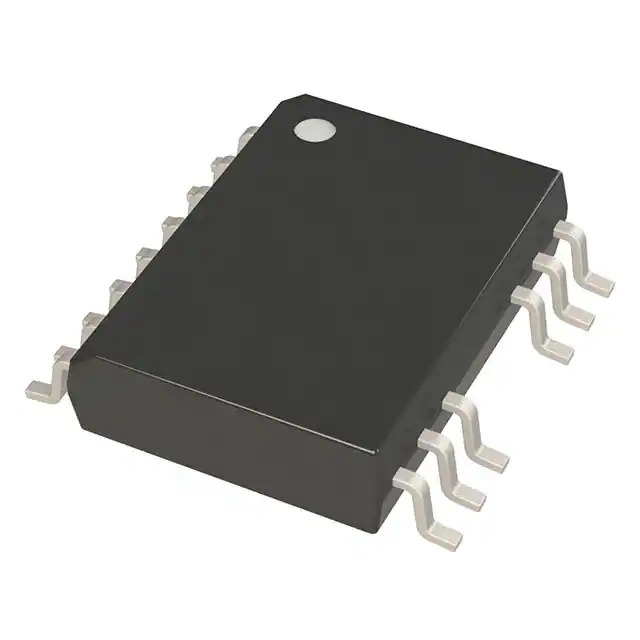

Compatibility with a wide range of temperatures, from -40°C to 125°C, makes the UCC21540ADWR versatile for industrial applications. Packaged in a 16-pin SOIC (Small Outline Integrated Circuit) with a body size of 10.30 mm x 7.50 mm, it is also designed for compactness, allowing for efficient use of PCB space.

In summary, the UCC21540ADWR from Texas Instruments is a highly reliable and efficient solution for driving power switches in a multitude of high-performance applications. Its excellent isolation, high peak output current, and robust transient voltage immunity make it a top choice for designers seeking to optimize their power systems.
