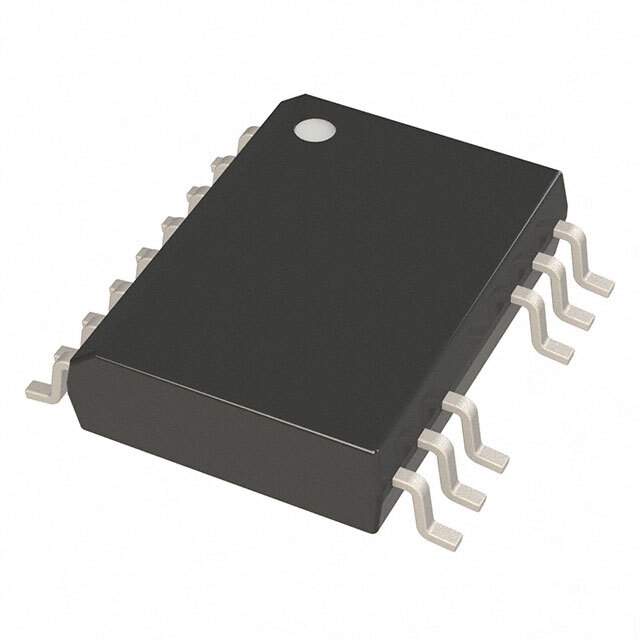

The UCC21540ADWKR from Texas Instruments is a robust, high-performance isolated dual-channel gate driver designed to drive power MOSFETs, IGBTs, and SiC MOSFETs with optimal efficiency and precision. This state-of-the-art driver is engineered to provide reliable isolation between the input signal and the power switches, thereby ensuring safety and noise immunity in high-voltage applications.

Key Features

• Isolation: With 5.7 kVRMS isolation for 1 minute, UCC21540ADWKR ensures safe operation by providing a physical barrier that protects the low-voltage side from the high-voltage power electronics.
• Dual-Channel: It offers independent control of two channels, allowing designers to implement both high-side and low-side driving configurations for various topologies.
• High Drive Strength: The device can deliver peak source and sink currents of 4 A and 6 A, respectively, enabling it to drive power switches effectively even at high frequencies.
• Wide Supply Voltage Range: It operates across a wide range of supply voltages from 15 V to 18 V, providing flexibility in different system designs.
• Fast Propagation Delays: The UCC21540ADWKR boasts a typical propagation delay of 19 ns with 5 ns maximum pulse width distortion, which allows for precise control of the power switches.
• Robustness: It is designed to withstand negative voltage transients up to -100 V, and features UVLO (Under Voltage Lock Out) for both VCCI and VDDI to ensure the gate driver operates only when sufficient supply voltage is present.
• CMC Immunity: Excellent common-mode transient immunity (CMTI) of 100 V/ns minimizes the risk of erroneous gate driver operation in noisy environments.

Applications

The UCC21540ADWKR is ideal for a wide range of applications that require reliable and efficient power management, including:

• Switch Mode Power Supplies (SMPS)
• Motor Drives
• Renewable Energy Inverters
• Electric Vehicle (EV) Charging Stations
• Industrial Power Supplies
• Power Factor Correction (PFC) circuits

Its robust design, combined with high performance and reliability, makes the UCC21540ADWKR an excellent choice for designers looking to enhance the efficiency and longevity of their power systems.
