Overview of Texas Instruments TUSB544IRNQT

The Texas Instruments TUSB544IRNQT is a versatile and high-performance USB Type-C and USB Power Delivery (PD) compliant redriver that is designed to enhance signal quality by performing equalization on deteriorated high-speed signals. The device is part of TI's extensive interface portfolio and is specifically tailored for applications that require reliable data transmission over long and potentially noisy channels.

Key Features

• Signal Redriver: The TUSB544IRNQT is capable of redriving signals on both the USB SuperSpeed and Sideband Use (SBU) channels, ensuring that the integrity of data transmission is maintained across various cable lengths and types.
• Compatibility: This redriver is compatible with USB 3.1 Gen 1 and Gen 2 signals, offering a wide range of data rates up to 10 Gbps, which makes it suitable for high-speed data transfer applications.
• Adjustable Equalization: It features programmable equalization and output swing, providing flexibility to optimize performance for specific system requirements and cable characteristics.
• Low Power Consumption: Designed with power efficiency in mind, the TUSB544IRNQT operates with low power consumption, making it ideal for portable and battery-powered devices.

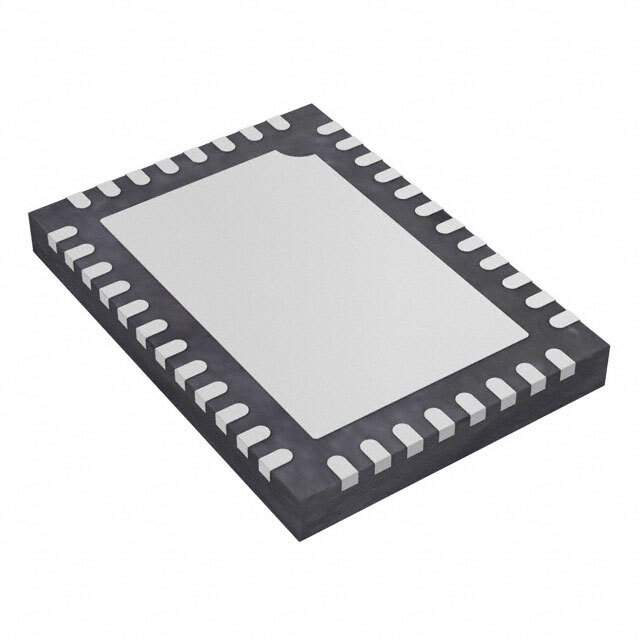

• Small Form Factor: The device comes in a compact 3.5mm x 9mm QFN package, which allows for easy integration into space-constrained designs.

Applications

The TUSB544IRNQT is suitable for a variety of applications, including:

• Docking stations
• Monitors and displays with USB Type-C connectivity
• USB hubs and peripherals
• Data storage and transfer cables
• Notebook and desktop computers

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the TUSB544IRNQT is no exception. The device is built to meet the high reliability standards expected from TI products, ensuring stable and long-lasting performance in a range of commercial and industrial environments.

Overall, the TUSB544IRNQT from Texas Instruments represents a robust solution for enhancing USB signal integrity, offering designers a reliable and flexible component for their high-speed data transfer applications.
