HEDL-5540#A11
Same model may have multiple batches, images only for reference.

HEDL-5540#A11

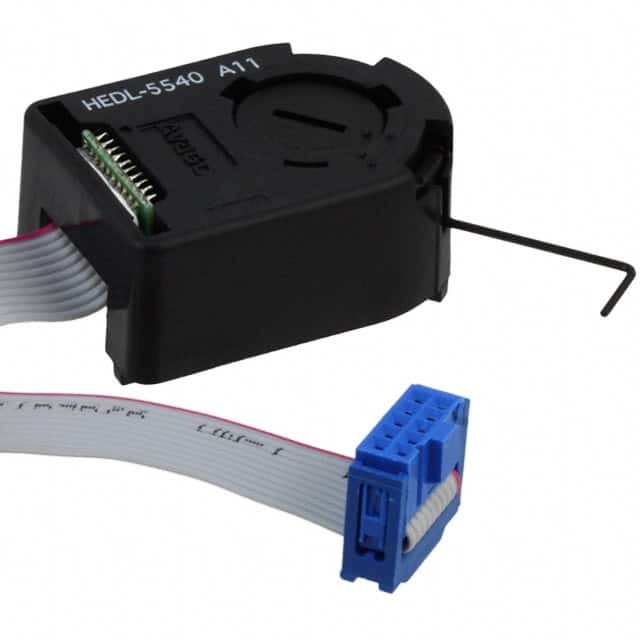

Part No HEDL-5540#A11
Manufacturer Broadcom Limited
Catalog Encoders
Description ROTARY ENCODER OPTICAL 500PPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders - Industrial
Mfr Broadcom Limited
Series HEDL
Package Bulk
Product Status Active
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 500
Voltage - Supply 5V
Actuator Type 4mm Open Center
Detent No
Built in Switch No
Mounting Type Chassis Mount, Motors
Orientation Vertical
Termination Style Cable with Connector
Base Product Number HEDL-5540
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Win Source Part Number 846830-HEDL-5540#A11
Ultra Librarian 3D Model Ultra Librarian HEDL-5540#A11 CAD Model

Description

The HEDL-5540#A11 is an industrial encoder designed for use in sensors and transducers. Manufactured by Broadcom Limited, this product is part of the HEDL series.

  • Termination Style: cable with connector termination style
  • Encoder Type: optical encoder
  • Output Type: quadrature output type
  • Pulses per Revolution: 500
  • Switch/Detent: No built-in switch or detent
  • Voltage Supply: 5V
  • Mounting: commonly mounted on chassis or motors
