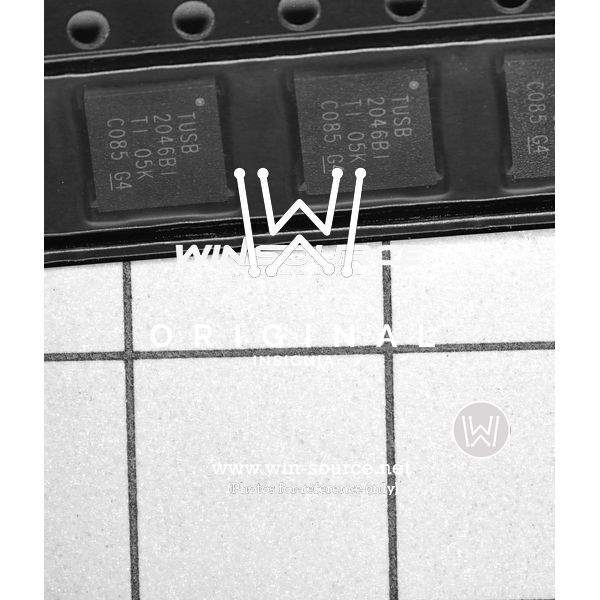

TUSB2046BIRHBT: A High-Performance USB Hub Controller from Texas Instruments

The TUSB2046BIRHBT is an advanced USB hub controller integrated circuit (IC) developed by Texas Instruments (TI), designed to expand a single USB port into multiple ports with enhanced connectivity options. This versatile IC is compliant with the Universal Serial Bus (USB) Specification 1.1 and provides a seamless interface for connecting multiple USB devices to a host system. It is an ideal solution for a variety of applications including desktop and notebook PCs, docking stations, monitors, and standalone hub devices.

Key Features:

• USB Interface: The TUSB2046BIRHBT supports up to four downstream ports, providing a significant increase in the number of USB devices that can be connected to a single USB host port.
• Compatibility: It is fully compliant with the USB 1.1 specification, ensuring compatibility with a wide range of USB devices.
• Power Management: The IC features per-port power control, allowing for better power management and conservation. Each port can be individually powered down when not in use, reducing overall power consumption.
• Overcurrent Protection: Built-in overcurrent protection safeguards connected devices and the hub itself from potential power surges, enhancing system reliability.
• Package: The TUSB2046BIRHBT comes in a 32-pin QFN package, which is suitable for compact PCB layouts and space-constrained applications.
• Integrated Oscillator: An integrated 6 MHz oscillator reduces the need for external components, simplifying the design and reducing the bill of materials.
• Operational Temperature: This IC is designed to operate over an extended temperature range, making it suitable for industrial and automotive applications.

Applications:

The TUSB2046BIRHBT is versatile and can be used in a variety of applications. Its ability to connect multiple devices makes it perfect for:

• Desktop and Laptop USB Expansion
• USB Docking Stations
• Integrated USB Hubs in Monitors and Keyboards
• Portable USB Hubs
• Industrial Control Systems

With its robust feature set and proven reliability, the TUSB2046BIRHBT from Texas Instruments stands out as a superior choice for designers looking to enhance USB connectivity in their products. Its integration of essential features and protection mechanisms makes it a compact, efficient, and reliable solution for expanding USB capabilities.
