Product Overview: Texas Instruments TSC2111IRGZT

The Texas Instruments TSC2111IRGZT is a cutting-edge, integrated circuit designed for high-performance audio and touch screen control applications. This versatile device combines a resistive touch screen controller with an audio codec, providing a comprehensive solution for mobile phones, personal digital assistants, and portable multimedia devices.

Touch Screen Controller Features

• 12-bit SAR ADC for precise touch screen measurements
• On-chip 4-wire touch screen drivers
• Support for up to 4 touch points
• Automatic touch detection and conversion sequencing
• Programmable touch screen pressure threshold
• Advanced power-saving features

Audio Codec Features

• High-quality stereo audio DAC with 98dB SNR
• Stereo audio ADC with 93dB SNR
• Integrated headphone amplifier
• Programmable gain amplifier for microphone input
• Flexible mixing, mute, and volume control functions
• Support for multiple audio interfaces including I2S, PCM, and TDM

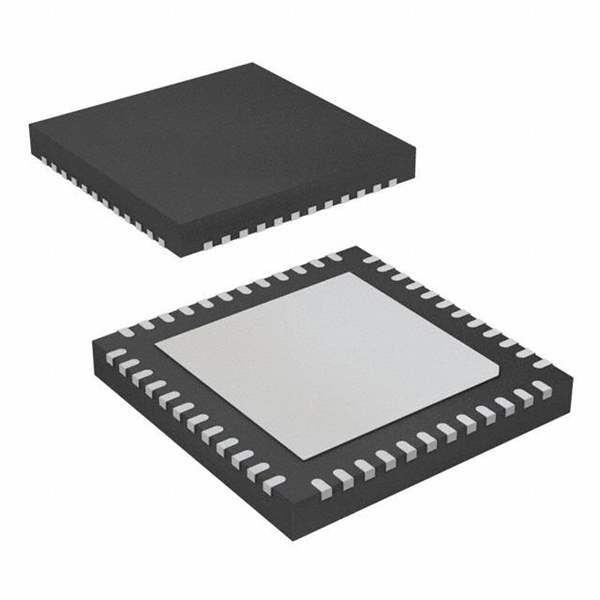

With its compact 48-VQFN (7x7) package, the TSC2111IRGZT is designed to fit into space-constrained applications, ensuring a minimal footprint on the system board. The device operates over a temperature range of -40°C to 85°C, making it suitable for various operating environments.

The integration of touch and audio functionalities not only saves space but also simplifies the design process, allowing for reduced time-to-market. The TSC2111IRGZT is equipped with a high-speed SPI interface for touch control communication and a flexible audio serial interface that supports industry-standard audio data formats.

Overall, the Texas Instruments TSC2111IRGZT is an exceptional choice for designers looking for an all-in-one solution that delivers high-quality audio performance along with reliable touch screen control. It is a testament to Texas Instruments' commitment to providing innovative, high-performance integrated circuits that meet the demands of today's advanced consumer electronics.
