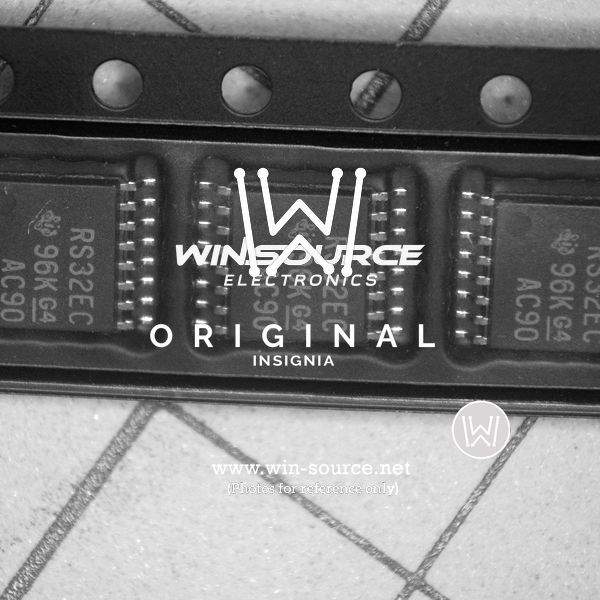

Product Overview: TRS3232ECDBR by Texas Instruments

The TRS3232ECDBR is a feature-rich integrated circuit designed by Texas Instruments, renowned for their innovative approach to semiconductor technology. This device is a dual driver and receiver that complies with the specifications of the RS-232 serial protocol, making it an ideal component for facilitating serial communication in a variety of electronic applications.

Key Features

• Electrical Interface: Conforms to the TIA/EIA-232-F Standards, ensuring compatibility with RS-232 communication protocols.
• Data Transmission Rates: Capable of operating at data rates up to 250 kbit/s, allowing for efficient serial data exchange.
• Low Power Consumption: Operates from a single 3.0V to 5.5V power supply, which minimizes power usage and is suitable for battery-powered applications.
• ESD Protection: Features robust Electrostatic Discharge (ESD) protection up to ±15kV, providing reliability and durability in harsh environments.
• Integrated Charge Pump: Comes with an onboard charge pump circuit that generates the necessary RS-232 voltage levels from a single power supply.
• Wake-Up Feature: Includes a wake-up function that allows devices to "wake up" from a standby mode when a signal is detected on the receiver inputs.

Applications

The TRS3232ECDBR is suitable for a wide range of applications where RS-232 communication is required. Some of these applications include:

• Point-of-Sale (POS) Terminals
• GPS Receivers
• Industrial Control Systems
• Data Acquisition Systems
• Networking and Telecommunication Equipment

Package and Quality

This device is offered in a compact SSOP (Shrink Small Outline Package) form factor, which is ideal for space-constrained applications. The TRS3232ECDBR is also characterized for operation from -40°C to 85°C, ensuring reliable performance across a wide range of temperatures. As with all Texas Instruments products, it is manufactured to meet high-quality standards, providing designers and engineers with a dependable solution for their serial communication needs.
