The TPSM84209RKHT is a highly efficient, synchronous step-down power module from Texas Instruments, designed to deliver exceptional performance in a compact, integrated package. This power module is part of TI's extensive portfolio of power management solutions, catering to a wide range of applications across various industries.

Key Features:

• Input Voltage Range: The TPSM84209RKHT operates with an input voltage range of 4.5V to 42V, making it versatile for use in systems with varying power supply requirements.
• Output Voltage Range: It provides an adjustable output voltage range from 0.5V to 17V, which can be set using external resistors. This feature allows for high flexibility in matching the voltage requirements of different loads.
• High Efficiency: With an efficiency of up to 95%, this power module ensures minimal power loss and heat generation, thereby reducing the need for additional thermal management.
• Integrated Inductor: The module includes an integrated inductor, which simplifies design and reduces external component count, leading to a smaller PCB footprint and quicker time to market.
• Output Current: It is capable of delivering up to 2A of continuous output current, suitable for powering a wide range of electronic devices and systems.

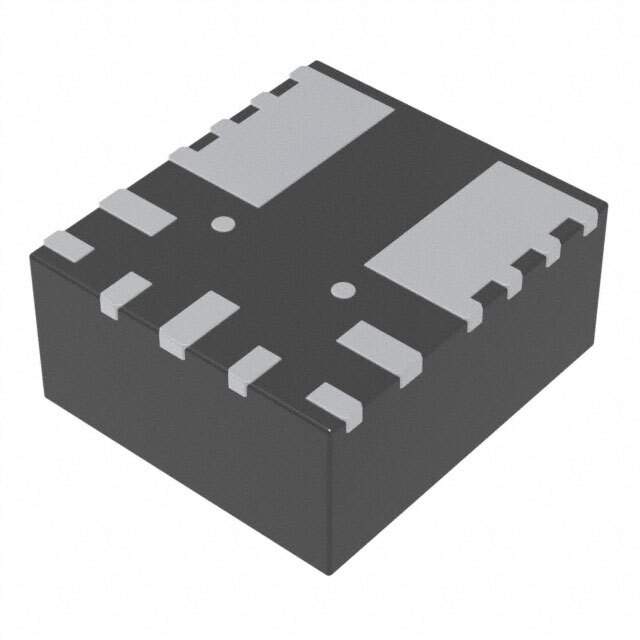

• Thermal Performance: The TPSM84209RKHT comes in a thermally enhanced, low-profile QFN package, which provides excellent thermal performance and is suitable for space-constrained applications.
• Protection Features: It includes a comprehensive set of protection features such as over-current, over-temperature, and under-voltage lockout, ensuring the reliability and longevity of both the module and the system it powers.

Applications:

The TPSM84209RKHT is ideal for a variety of applications, including but not limited to industrial automation, telecommunications, networking equipment, and consumer electronics. Its robust design and easy-to-use features make it a go-to power solution for engineers looking to streamline their power supply designs.

Summary:

In summary, the TPSM84209RKHT by Texas Instruments is a feature-rich, efficient, and reliable power module that simplifies the power design process. Its wide input voltage range, adjustable output, high efficiency, and integrated components make it an excellent choice for designers seeking a compact, high-performance power management solution.
