Overview of TPS92682QRHBRQ1

The TPS92682QRHBRQ1 is a highly sophisticated and versatile LED controller integrated circuit designed and manufactured by Texas Instruments. This advanced product is tailored for automotive lighting systems, providing efficient and reliable solutions for headlamps, tail lights, and interior illumination applications. With its state-of-the-art features, the TPS92682QRHBRQ1 ensures optimal performance in managing complex lighting systems in modern vehicles.

Key Features

• Dual-Channel Operation: The device supports two independent channels, enabling the control of multiple LED strings with precision and flexibility.
• Wide Input Voltage Range: It operates over a broad input voltage range, accommodating the varying electrical conditions typical in automotive environments.
• Programmable Switching Frequency: Users can adjust the switching frequency to optimize the controller for different applications and design requirements.
• Advanced Thermal Management: The TPS92682QRHBRQ1 incorporates thermal shutdown and over-temperature protection, safeguarding the system against excessive heat conditions.
• Robust Protection Features: The controller is equipped with a suite of protection features, including under-voltage lockout, LED open and short circuit protection, and overvoltage protection, ensuring the longevity and safety of the lighting system.

Applications

Designed with automotive applications in mind, the TPS92682QRHBRQ1 is ideal for a variety of lighting solutions:

• Adaptive front-lighting systems (AFS)
• Daytime running lights (DRL)
• Rear combination lamps (RCL)
• Interior lighting such as dome and map lights

Quality and Reliability

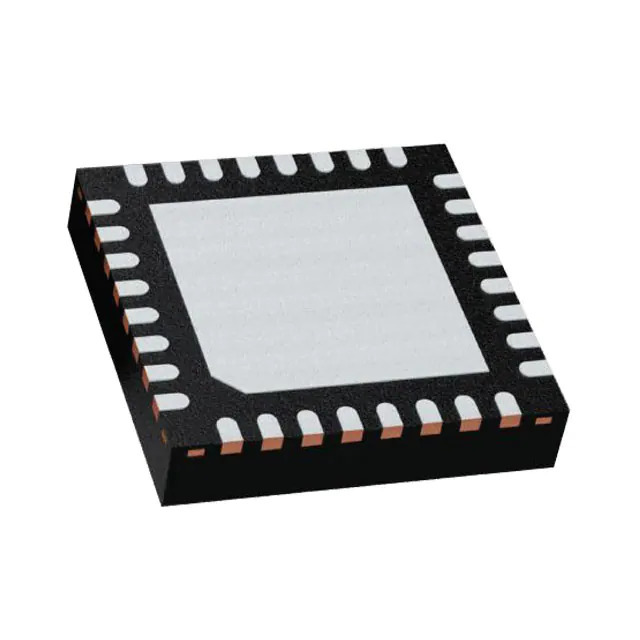

The TPS92682QRHBRQ1 is part of Texas Instruments' automotive product lineup, which means it meets stringent quality and reliability standards. It is AEC-Q100 qualified, ensuring performance under harsh automotive operating conditions. The device is also provided in a compact QFN package, which is highly suited for space-constrained applications.

In summary, the TPS92682QRHBRQ1 from Texas Instruments is a top-tier LED controller that offers a combination of advanced features, robust protection, and automotive-grade reliability. It stands as an ideal choice for designers seeking to enhance the lighting systems of modern vehicles with an efficient and adaptable solution.
