Overview of Texas Instruments TPS826765SIPT

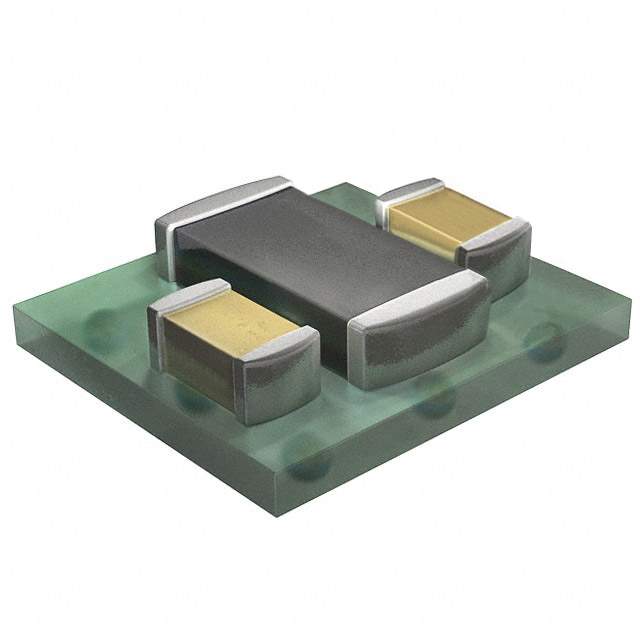

The Texas Instruments TPS826765SIPT is a highly-integrated power solution designed for space-constrained applications. It is a MicroSiP™ step-down converter module that combines a high-performance switching regulator with integrated inductor technology to deliver a compact and efficient power management solution.

Key Features

• High Efficiency: The TPS826765SIPT offers a high efficiency across the entire load range, making it ideal for battery-powered devices where power conservation is critical.
• Integrated Inductor: With an inductor integrated into the module, this power solution reduces the need for external components, simplifying design and saving precious board space.
• Adjustable Output Voltage: This module supports an adjustable output voltage range, providing design flexibility to meet specific application requirements.
• Low Quiescent Current: It features a low quiescent current, which helps to minimize power consumption during light load operations or standby mode.
• Fast Transient Response: The TPS826765SIPT is designed to provide a fast transient response, ensuring stable performance even during sudden changes in load.

Applications

Due to its small size and high efficiency, the TPS826765SIPT is well-suited for a variety of applications, including but not limited to:

• Smartphones and other portable electronics
• Wireless power supplies
• Point-of-load conversions
• Wearable devices

Technical Specifications

The module operates over a wide input voltage range and features a low dropout mode for enhanced performance when the input voltage is close to the output voltage. It also includes a range of protective features such as over-temperature and over-current protection to ensure reliable operation under different conditions.

Conclusion

The TPS826765SIPT from Texas Instruments exemplifies cutting-edge power management technology, offering designers a compact, efficient, and versatile solution that meets the stringent demands of modern electronic devices.
