Product Overview: TPS2HB16AQPWPRQ1 from Texas Instruments

The TPS2HB16AQPWPRQ1 is a state-of-the-art integrated circuit designed and manufactured by Texas Instruments, a leader in semiconductor technology. This device is part of TI's extensive portfolio of automotive-grade power management ICs, tailored to meet the rigorous standards of the automotive industry. The TPS2HB16AQPWPRQ1 is specifically engineered to provide a reliable and efficient power distribution solution, making it an ideal choice for automotive applications such as powertrain systems, body electronics, and advanced driver assistance systems (ADAS).

Key Features

• High-Side Switch: The TPS2HB16AQPWPRQ1 is a high-side switch, meaning it is designed to control power delivery from the positive side of the supply. This approach is beneficial for protecting downstream circuits and offers ease of implementation in various power distribution networks.
• Smart Power Distribution: It incorporates smart features such as programmable current limits, which ensure that each connected load receives the correct amount of power without risking damage from overcurrent conditions.
• Diagnostic Functions: The device includes comprehensive diagnostic capabilities that help detect and report faults such as open load, short to battery, and overtemperature conditions, thereby enhancing system reliability and safety.
• Robust Protection: The TPS2HB16AQPWPRQ1 offers robust protection features, including under-voltage lockout, overvoltage protection, and thermal shutdown, ensuring the device and connected components are safeguarded under adverse conditions.

Automotive Grade

As an AEC-Q100 qualified device, the TPS2HB16AQPWPRQ1 meets the stringent requirements of automotive applications. It is designed to withstand the harsh environments of automotive applications, including extreme temperatures and vibrations.

Package and Integration

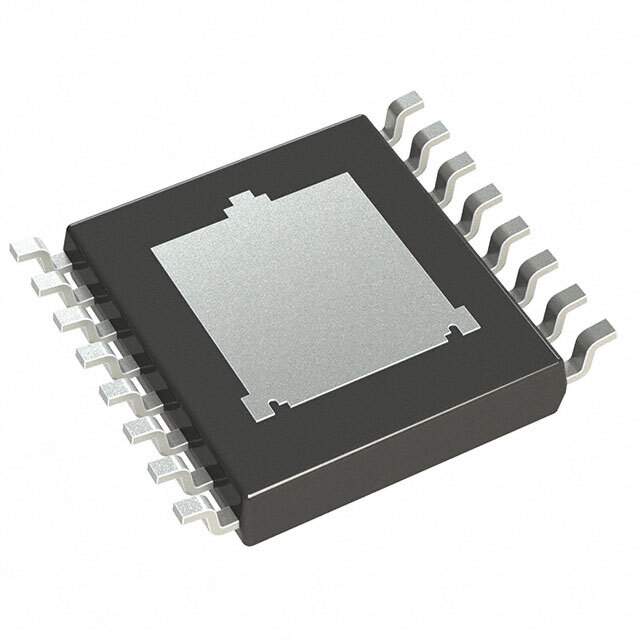

The TPS2HB16AQPWPRQ1 comes in a compact, thermally-enhanced package that allows for efficient heat dissipation and space-saving on the PCB. Its integration-friendly design simplifies the design-in process, allowing automotive system designers to reduce development time and speed up the time-to-market for their products.

In summary, the TPS2HB16AQPWPRQ1 from Texas Instruments is a high-performance, automotive-grade power switch that offers advanced power distribution, diagnostic capabilities, and protection features, all packed into a robust and compact package suitable for a wide range of automotive applications.
