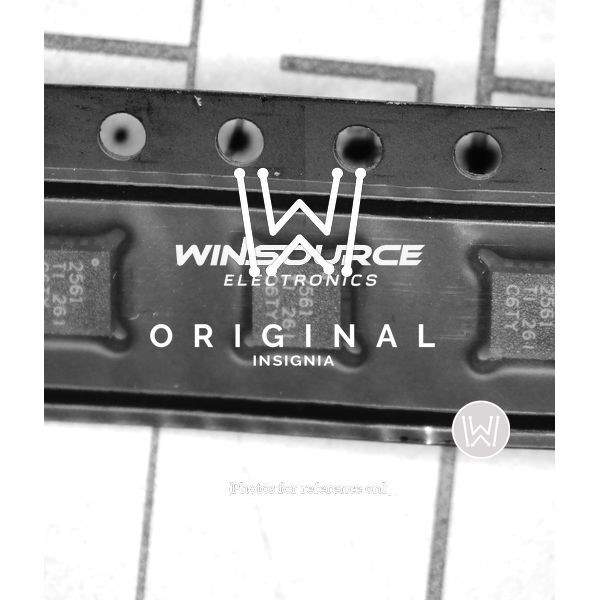

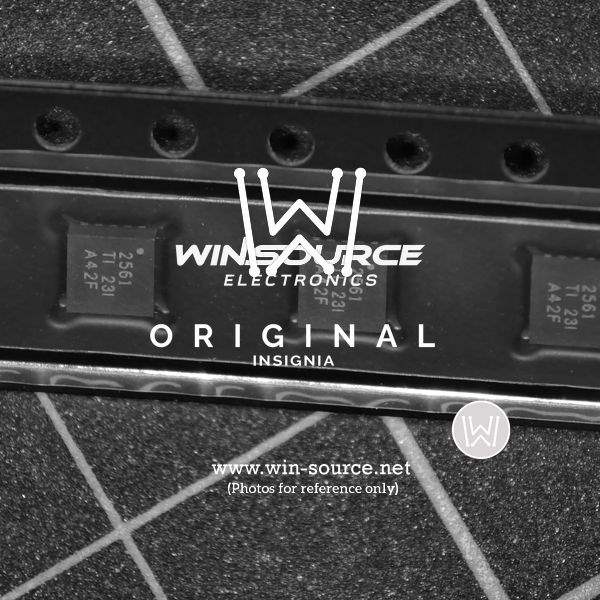

The TPS2561DRCT from Texas Instruments is a state-of-the-art power management integrated circuit (IC) designed for applications that require precise current regulation and protection. This dual-channel, adjustable, current-limited power switch provides an efficient and compact solution for USB and other hot-swap applications.

Key Features

• Adjustable Current Limiting: The TPS2561DRCT offers adjustable current limits, allowing designers to tailor the current protection to match specific system requirements, ensuring safe operation under various load conditions.
• Dual Channels: With two independent channels, this IC can manage multiple devices or ports simultaneously, providing design flexibility and saving board space.
• Overcurrent Protection: The device features fast overcurrent protection to prevent damage to the host system from overcurrent events.
• Thermal Shutdown: An integrated thermal shutdown function protects the IC from overheating, enhancing system reliability.
• Under-Voltage Lockout (UVLO): The UVLO feature ensures that the device operates at the correct voltage levels, preventing malfunction due to undervoltage conditions.

Applications

The TPS2561DRCT is ideal for a wide range of applications, including:

• USB hubs and ports
• Peripheral power management
• Hot-swap power supplies
• Industrial and automotive applications

Technical Specifications

• Input Voltage Range: 2.5V to 6.5V
• Continuous Load Current: Up to 1.5A per channel
• Operating Temperature Range: -40°C to 85°C
• Package: 10-pin VSON with thermal pad

With its robust design and comprehensive feature set, the TPS2561DRCT is an excellent choice for designers looking to enhance system safety and reliability while minimizing power loss and board space. Texas Instruments' commitment to quality ensures that this power switch will deliver consistent performance and durability for your critical applications.
