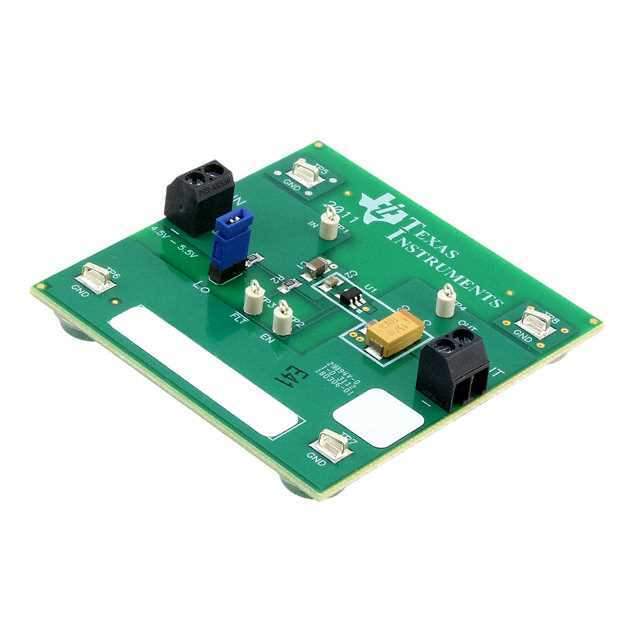

Product Overview: TPS2530EVM-636

The TPS2530EVM-636 from Texas Instruments is a highly efficient evaluation module designed to demonstrate the functionality and versatility of the TPS2530 USB Power Switch and Over-Current Protection IC. This evaluation module is an essential tool for designers and engineers who want to test the performance of the TPS2530 IC in various USB power supply and protection applications.

Key Features

• Precision Current Limiting: The TPS2530EVM-636 is equipped with a feature that allows precise control over the current provided to USB devices, ensuring protection against over-current conditions.
• Adjustable Current Limit: Users can adjust the current limit to suit the needs of their specific application, providing flexibility and customization.
• Fast Overcurrent Response: With its quick response to overcurrent situations, the TPS2530EVM-636 helps to prevent damage to USB ports and connected devices.
• Reverse Voltage Protection: The module includes built-in protection to prevent damage from reverse voltages, enhancing the safety of the evaluation process.
• Easy-to-Use: The evaluation module is designed for simplicity, allowing users to quickly set up and begin testing without a complicated setup process.

Applications

The TPS2530EVM-636 is ideal for a variety of applications where USB power delivery and protection are critical. This includes, but is not limited to:

• USB Hubs
• Consumer Electronics
• Portable Devices
• Desktop and Laptop Computers

Technical Specifications

The TPS2530EVM-636 operates over a wide input voltage range and features a compact design for easy integration into existing systems. The evaluation module also includes test points for convenient measurement of electrical parameters.

Additional Resources

For more detailed information, users can access a wealth of resources provided by Texas Instruments, including datasheets, user manuals, and application notes. These resources are designed to facilitate a deeper understanding of the TPS2530EVM-636's capabilities and to assist in the development of end-user applications.
