The TPS2530DBVR is a highly integrated power management solution from Texas Instruments, designed to enhance the performance and reliability of USB power distribution. This compact device is an essential component for applications that require precise current limiting and power distribution, such as USB hubs, docking stations, and portable devices.

Key Features

• Adjustable Current-Limit Threshold: The TPS2530DBVR allows designers to set a specific current limit threshold to match the requirements of their system, ensuring safe operation and protection against overcurrent conditions.
• Fast Overcurrent Response: With its rapid response to overcurrent events, this device protects both the USB port and downstream devices from potential damage.
• Reverse Voltage Blocking: This feature prevents damage to the device and the system in the event of a reverse voltage being applied, enhancing system reliability.
• High Accuracy: The TPS2530DBVR provides high accuracy in current-limit threshold, ensuring precise control over the power delivered to connected devices.
• Power Good (PG) Output: The PG output offers a real-time status indicator that can be used to enable downstream converters once the input voltage is stable and within the valid range.

Applications

The TPS2530DBVR is versatile and can be used in a wide range of applications. It is particularly well-suited for:

• USB hubs and peripherals
• Consumer electronics
• Portable devices with USB interfaces
• Industrial and automotive USB power distribution

Package and Quality

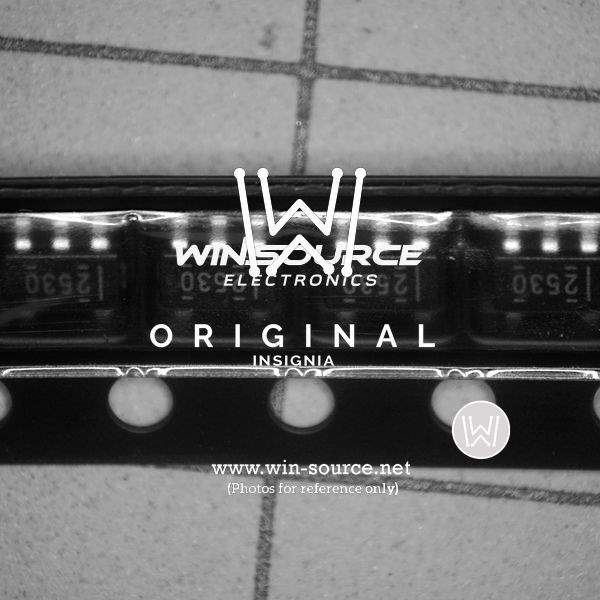

Housed in a SOT-23-6 package, the TPS2530DBVR offers a compact footprint suitable for space-constrained applications. Texas Instruments' commitment to quality ensures that this device meets the highest standards for performance and reliability.

Overall, the TPS2530DBVR is a sophisticated power management solution that provides designers with the flexibility and protection required for advanced USB power distribution systems. Its combination of features makes it a go-to choice for ensuring safe and efficient operation in a variety of electronic devices.
