The TPS2343DDPRG3 is a state-of-the-art power distribution switch designed by Texas Instruments, tailored for applications that require efficient power management and distribution. This component is part of the TPS series, which is known for its reliability and performance in managing power requirements across various electronic devices.

Key Features

• Input Voltage Range: The TPS2343DDPRG3 operates within an input voltage range of 2.7V to 5.5V, making it versatile for a wide array of applications from low-voltage to standard 5V systems.
• Dual Channel: This device features dual power distribution channels, allowing simultaneous control and protection for multiple lines.
• Current Limiting: Each channel has built-in current limiting to protect the device and the load from overcurrent conditions, enhancing the overall safety and longevity of the application.
• Thermal Shutdown: With an integrated thermal shutdown feature, the TPS2343DDPRG3 prevents overheating, thereby securing the system during high-temperature operations.
• Fast Transient Response: The device is designed to provide a rapid response to transient loads, ensuring stable operation during sudden changes in demand.
• Under-Voltage Lockout: The under-voltage lockout (UVLO) ensures that the device operates only when the input voltage is within a safe range.

Applications

The TPS2343DDPRG3 is suitable for a multitude of applications, including but not limited to:

• USB Hubs and Peripherals
• Hot Swap Supplies
• Power Management for Motherboards
• Peripheral Power Management

Package and Quality

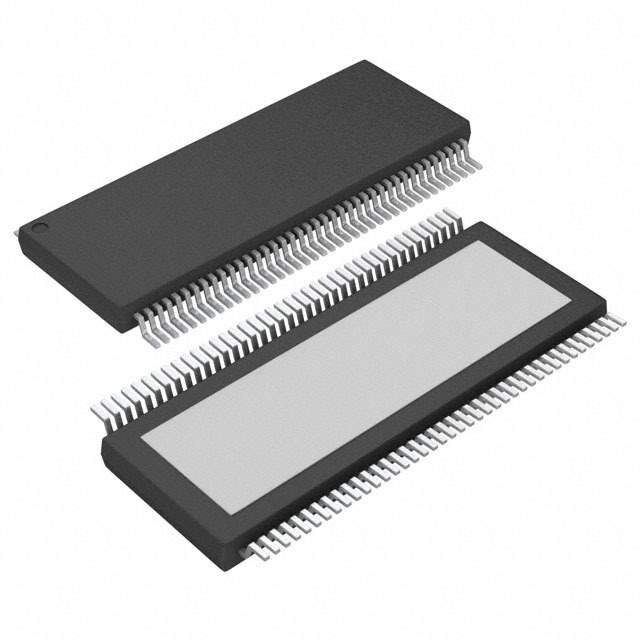

Encased in a HTSSOP (Thin Shrink Small Outline Package), the TPS2343DDPRG3 is designed for surface mount technology, ensuring a compact footprint on the PCB. Texas Instruments upholds rigorous quality standards, and this product complies with the industry's high reliability and performance criteria.

Conclusion

The TPS2343DDPRG3 from Texas Instruments is an exemplary solution for designers looking to implement a robust power distribution system with advanced protection features. Its dual-channel operation, combined with current limiting, thermal shutdown, and UVLO, makes it an indispensable component for modern electronic systems requiring dependable power management.
