The TPS22994RUKR from Texas Instruments is a versatile, high-efficiency power management IC designed for a wide range of applications. This device is part of the TPS2299x family of integrated load switches that offer advanced power control solutions with multiple channels. It is ideal for systems that require effective power distribution and management to enhance performance, extend battery life, and reduce power dissipation.

Key Features:

• Quad-Channel Load Switch: The TPS22994RUKR features four independently controlled load switch channels, allowing precise control over multiple power paths within a system.
• Low ON-Resistance: Each channel has a low on-resistance (RON), minimizing voltage drop and power loss when the switch is in the ON state, thus improving the overall efficiency of the system.
• Adjustable Rise Time: The device offers an adjustable output slew rate, which helps to mitigate inrush current and reduce system noise during power-up sequences.
• Quick Output Discharge: An integrated quick output discharge (QOD) feature enables fast discharge of the output capacitance when the switch is turned off, which is crucial for applications that require rapid power-down sequences.
• Power-Up Sequencing: Built-in sequencing logic allows for configurable power-up sequences, simplifying the design of complex power systems and ensuring proper startup of downstream components.
• Protection Features: The TPS22994RUKR is equipped with over-current protection (OCP), over-voltage protection (OVP), and thermal shutdown features to safeguard the system from various fault conditions.

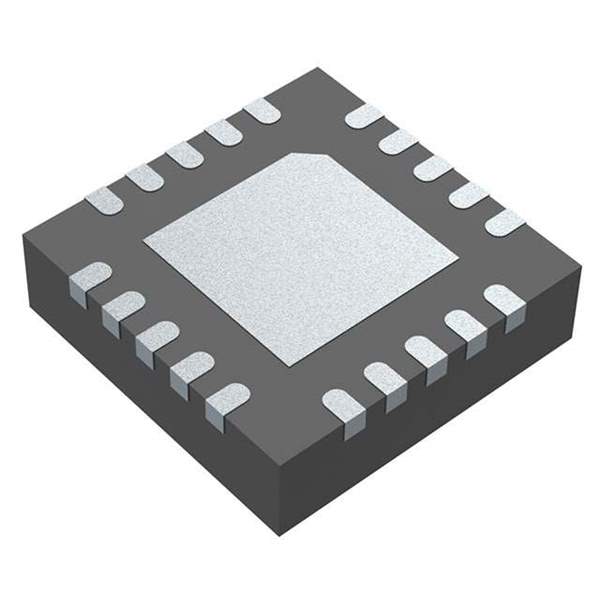

• Compact Package: Housed in a small, space-saving 20-pin WQFN package, the device is suitable for space-constrained applications.

Applications:

The TPS22994RUKR is designed for use in a variety of applications, including enterprise and cloud computing, storage systems, portable electronics, and industrial equipment. Its robust feature set and compact size make it an excellent choice for designers looking to optimize power management in their next-generation products.

Conclusion:

With its advanced features, high efficiency, and protective measures, the TPS22994RUKR by Texas Instruments stands out as a reliable and versatile solution for modern power management challenges. Its ability to control multiple power domains with precision makes it a valuable component in the development of efficient and safe electronic systems.
