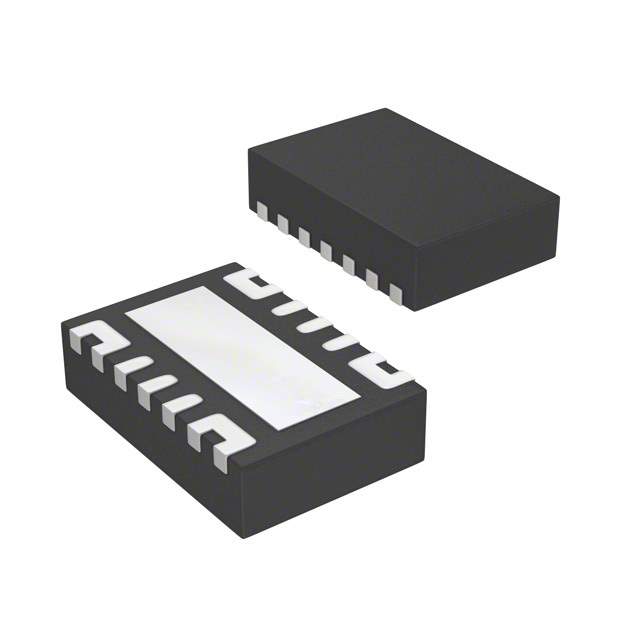

Overview of Texas Instruments TPS22976NDPUT

The TPS22976NDPUT is a state-of-the-art load switch from Texas Instruments, designed for optimal performance in managing power distribution within electronic systems. This compact, high-efficiency component offers a slew of features that make it an excellent choice for a variety of applications, including but not limited to consumer electronics, portable devices, and industrial equipment.

Key Features

• Ultra-Low On-Resistance: The TPS22976NDPUT boasts an ultra-low on-resistance (RON) which significantly reduces power loss and improves efficiency, making it ideal for battery-powered applications where energy conservation is critical.
• Input Voltage Range: It operates over a wide input voltage range, accommodating various system requirements and ensuring compatibility with a broad array of power sources.
• Adjustable Rise Time: The load switch features an adjustable rise time, which helps to mitigate inrush current, thus protecting downstream components from potential damage caused by sudden surges of power.
• Bidirectional Current Capability: This device is capable of handling bidirectional current, which enhances its versatility in complex power management schemes.
• Quick Output Discharge: The TPS22976NDPUT includes a quick output discharge feature that ensures the output voltage is rapidly brought to ground when the switch is turned off, preventing any lingering voltage that could potentially harm other circuit components.

Applications

Given its robust feature set, the TPS22976NDPUT is well-suited for a variety of applications. It can be used to switch power in systems that require precise control over their power states, such as:

• Smartphones, tablets, and other portable devices
• Wearable technology
• Internet of Things (IoT) devices
• Power management modules
• Industrial control systems

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the TPS22976NDPUT is no exception. This load switch is built to meet the highest industry standards, ensuring reliable performance under a wide range of environmental and operational conditions. With the TPS22976NDPUT, designers can trust that they are incorporating a power management solution that is both durable and efficient.
